Monitor DTC Status

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON"
  3. Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
  4. Is DTC status displayed as Present?

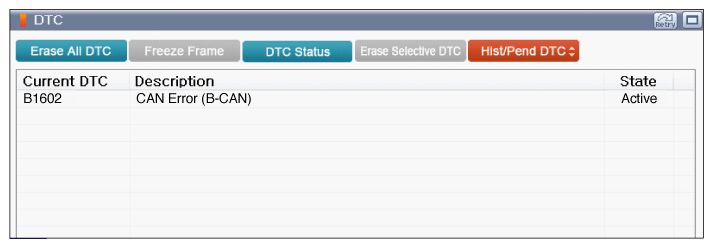

    Fig 1: Display - CAN Error Screen
    G11857416Courtesy of KIA MOTORS AMERICA, INC.

    YES

    NO
