Repair Procedures: Removal

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the Negative (-) Battery Terminal.
  2. Remove the tail gate trim.

    (Refer to Body - "TAIL GATE TRIM ")

  3. Disconnect the smart tailgate latch and PCU assembly connector (A).
    Fig 1: Locating Smart Tailgate Latch And PCU Assembly Connector
    G11863259Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the smart tailgate latch mounting bolts.
  5. Remove the smart tailgate latch and PCU assembly (A) after loosening the nuts.

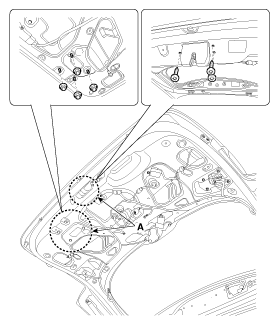

Fig 2: Removing Smart Tailgate Latch And PCU Assembly Nuts
G11863260Courtesy of KIA MOTORS AMERICA, INC.
