Monitor GDS Data

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON"
  4. Monitor the "Read Class Status" parameter in "Current Data" with GDS.

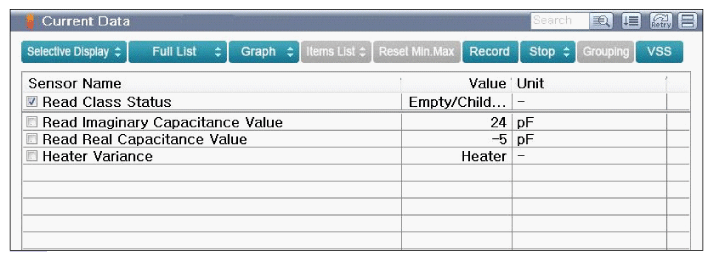

    Fig 1: Scantool Display - Read Class Status (Passenger Unoccupied)
    G11855214Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Scantool Display - Read Class Status (Passenger Occupied)
    G11855215Courtesy of KIA MOTORS AMERICA, INC.
  5. Has a problem been found?

    YES

    NO

    • Fault is intermittent caused by poor contact in the part's and/or Passenger side Body Sensor Mat & ECU connector or was repaired and Passenger Weight Classification Sensor Mat & ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
