Component Replacement

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Ignition "OFF"
Connect GDS to Data Link Connector (DLC).
Ignition "ON"
Perform "Body Sensor Reset" in "Vehicle S/W Management" with GDS.

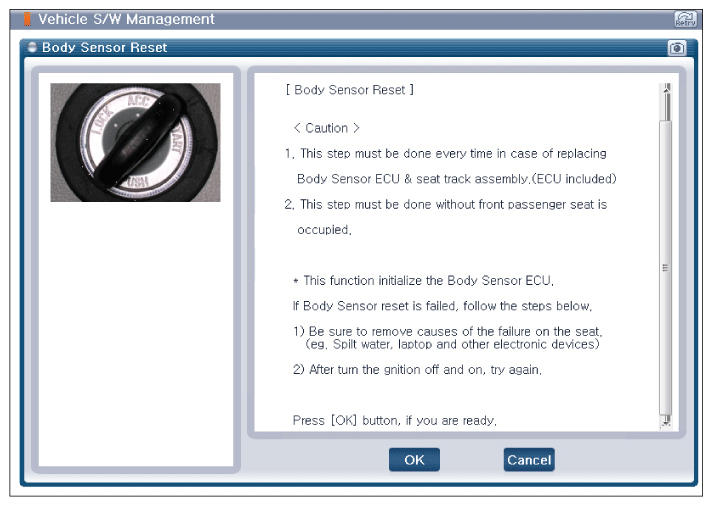

Fig 1: Scantool Display - Body Sensor Reset 1
Courtesy of KIA MOTORS AMERICA, INC.

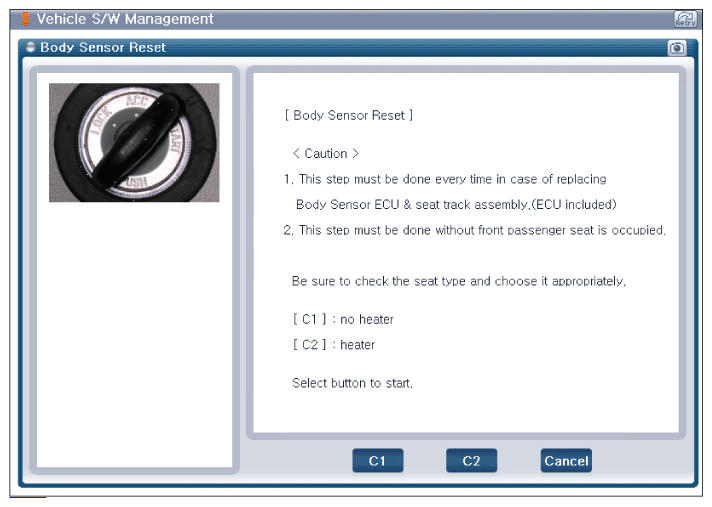

Fig 2: Scantool Display - Body Sensor Reset 2
Courtesy of KIA MOTORS AMERICA, INC.

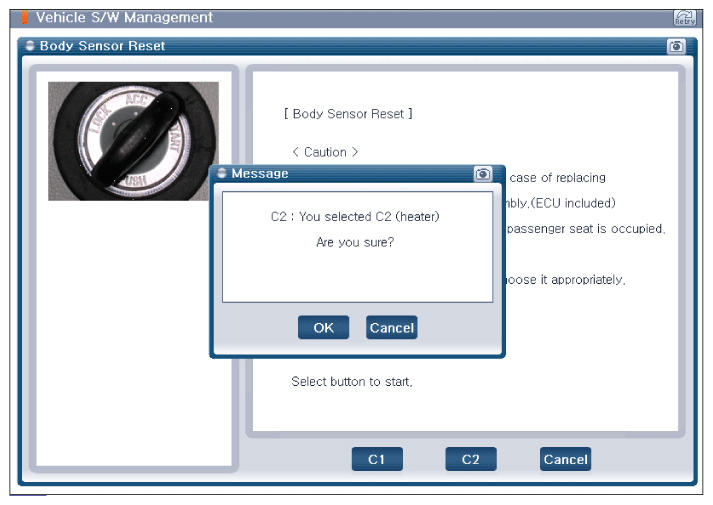

Fig 3: Scantool Display - Body Sensor 3
Courtesy of KIA MOTORS AMERICA, INC.

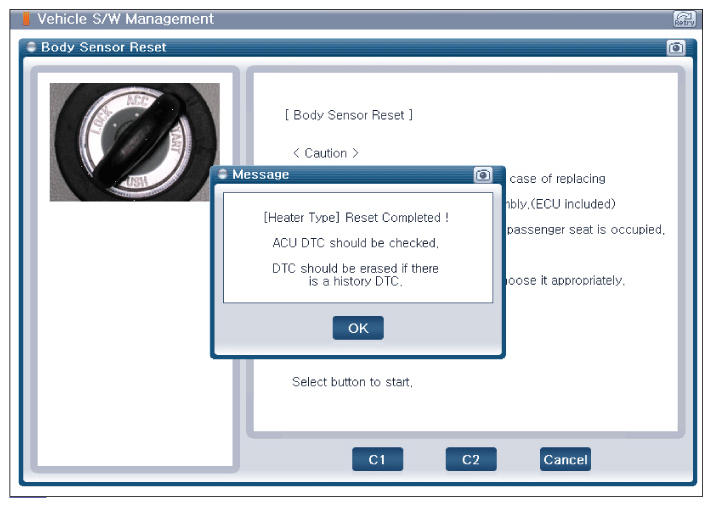

Fig 4: Scantool Display - Body Sensor 4
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Scantool Display - Body Sensor 5
Courtesy of KIA MOTORS AMERICA, INC.
Turn Ignition "OFF" and then "ON"
Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
Clear all DTCs in the system with GDS.
Re-check DTC in the system with GDS.
