GDS Data Analysis

WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS.
IG "ON" and engine "OFF".
Select "Diagnostic Trouble Codes (DTC)" mode.
After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC Detecting Condition " table).

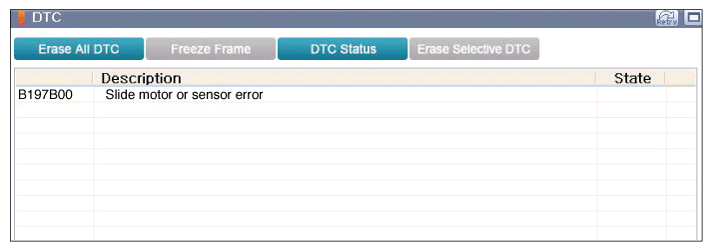

Fig 1: Display - Slide Motor/Sensor Error DTC Screen
Courtesy of KIA MOTORS AMERICA, INC.
Does the same DTC return?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or PSM's connector or was repaired and PSM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
