Components and Components Location: Component: Notes
WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

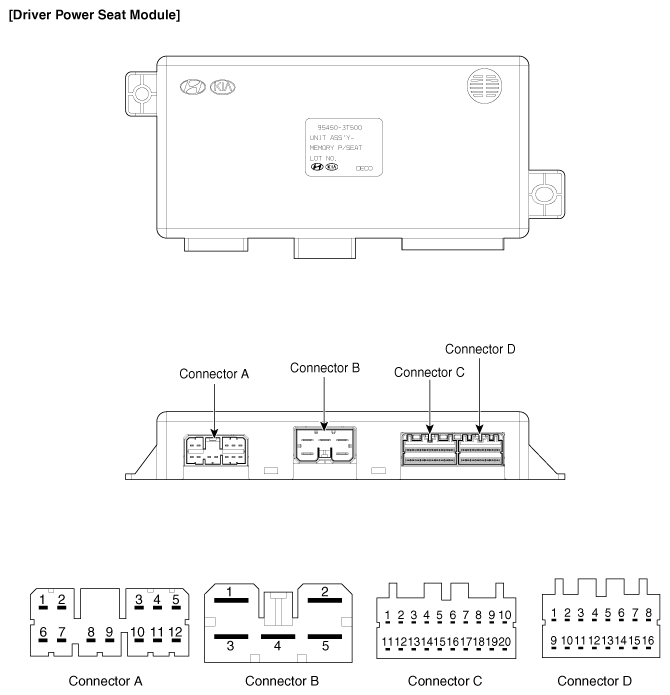

CONNECTOR INFORMATION (DRIVER)
| No. | Connector A | Connector B | Connector C | Connector D |
|---|---|---|---|---|
| 1 | Cushion exentrion motor (Front) | GND (power) | Slide Front limit switch | - |
| 2 | Front height motor (Up) | GND (power) | Recline Front limit switch | - |
| 3 | Rear height motor (Up) | B+ (power) | Seat sensor power 2 | - |
| 4 | Recline motor (Front) | - | Cushion extension sensor | CAN high |
| 5 | Slide motor (Front) | B+ (power) | - | CAN low |
| 6 | Cushion extension motor (Rear) | Rear Slide sensor | - | |
| 7 | Front height motor (Down) | - | IGN1 | |
| 8 | Head rest motor (Up) | Front Slide sensor | Battery (ECU) | |
| 9 | Head rest motor (Down) | Rear height motor sensor (Up) | - | |
| 10 | Rear height motor (Down) | Seat sensor power 1 | - | |
| 11 | Recline motor (Rear) | Slide Rear limit switch | - | |
| 12 | Slide motor (Rear) | Recline Rear limit switch | - | |
| 13 | - | - | ||
| 14 | Head rest sensor | - | ||
| 15 | - | - | ||
| 16 | Front height Down switch | GND (ECU) | ||
| 17 | Rear height Down switch | |||
| 18 | Recline sensor | |||
| 19 | Front height Up motor sensor | |||
| 20 | Seat sensor GND |

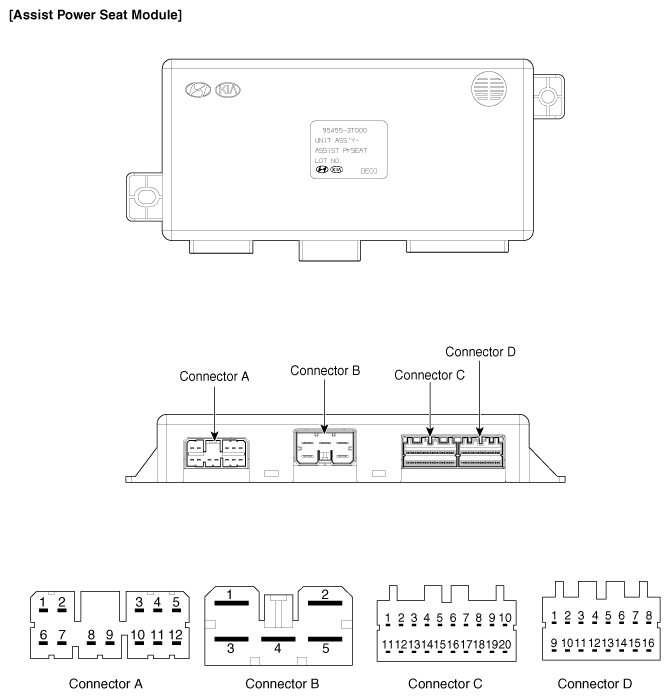

CONNECTOR INFORMATION (ASSIST)
| No. | Connector A | Connector B | Connector C | Connector D |
|---|---|---|---|---|
| 1 | - | GND (power) | Slide Front limit switch | Slide front switch (Walk-in) |
| 2 | Front height motor (Up) | GND (power) | Recline Front limit switch | Recline front switch (Walk-in) |
| 3 | Rear height motor (Up) | B+ (power) | Seat sensor power 2 | Rear seat slide front switch |
| 4 | Recline motor (Front) | - | - | CAN high |
| 5 | Slide motor (Front) | B+ (power) | - | CAN low |
| 6 | - | Rear Slide sensor | - | |
| 7 | Front height motor (Down) | Rear seat AUTO switch | IGN1 | |
| 8 | Head rest motor (Up) | Front Slide sensor | Battery (ECU) | |
| 9 | Head rest motor (Down) | Rear height motor sensor (Up) | Slide rear switch (Walk-in) | |
| 10 | Rear height motor (Down) | Seat sensor power 1 | Recline rear switch (Walk-in) | |
| 11 | Recline motor (Rear) | Slide Rear limit switch | Rear seat slide rear switch | |
| 12 | Slide motor (Rear) | Recline Rear limit switch | Rear seat slide front control | |
| 13 | SBR mat switch | Rear seat slide rear control | ||
| 14 | Head rest sensor | - | ||
| 15 | Rear seat slide limit switch | - | ||
| 16 | - | GND (signal) | ||
| 17 | Rear height Down switch | |||
| 18 | Recline sensor | |||
| 19 | Front height Up motor sensor | |||
| 20 | Seat sensor GND |
