Component Location

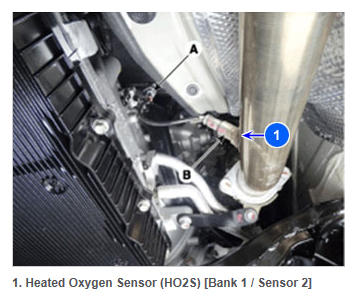

Fig 1: Heated Oxygen Sensor (Bank 1 / Sensor 2)
G11424978Courtesy of HYUNDAI MOTOR AMERICA
