[Knock Sensor #2 (Bank 2)]

  1. Remove the RH engine mounting support bracket.

    (Refer to Engine Mechanical System - "ENGINE MOUNTING ")

  2. Disconnect the knock sensor connector (A).

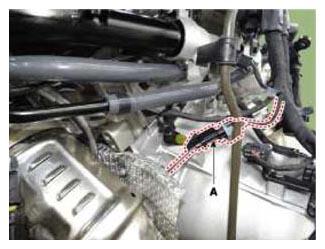

    Fig 1: Knock Sensor Connector
    G11412166Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the installation bolt (A), and then remove the sensor from the cylinder block.

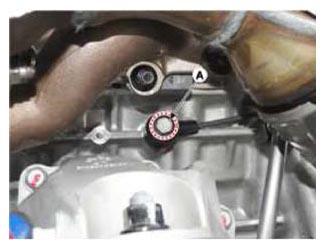

Fig 2: Knock Sensor Installation Bolt
G11412167Courtesy of HYUNDAI MOTOR AMERICA
