[CVVT Oil Control Valve (Exhaust)]

[Bank 1]

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
2. Disconnect the CVVT oil control valve connector (A).

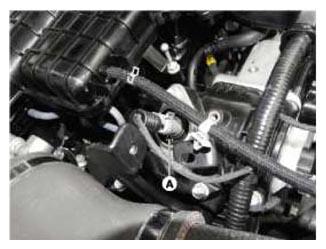

   Fig 1: CVVT Oil Control Valve Connector

   Courtesy of HYUNDAI MOTOR AMERICA
3. Remove the cylinder head cover.

   (Refer to Engine Mechanical System - "CYLINDER HEAD ASSEMBLY - 3.3L ")

4. Remove the CVVT oil control valve from the engine, after removing the bolts (A).

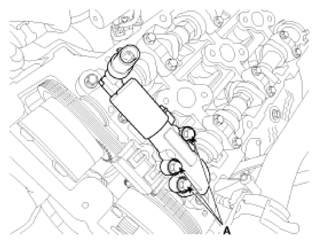

   Fig 2: CVVT Oil Control Valve Bolts

   Courtesy of HYUNDAI MOTOR AMERICA

[Bank 2]

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
2. Disconnect the CVVT oil control valve connector (A).
   Fig 3: CVVT Oil Control Valve Connector

   Courtesy of HYUNDAI MOTOR AMERICA
3. Remove the cylinder head cover.

   (Refer to Engine Mechanical System - "CYLINDER HEAD ASSEMBLY - 3.3L ")

4. Remove the CVVT oil control valve from the engine, after removing the bolts (A).

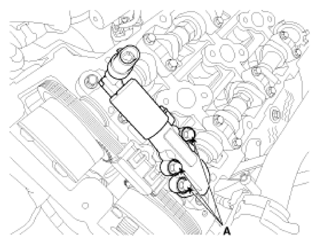

   Fig 4: CVVT Oil Control Valve Bolts

   Courtesy of HYUNDAI MOTOR AMERICA
