Fuel Delivery System: Troubleshooting

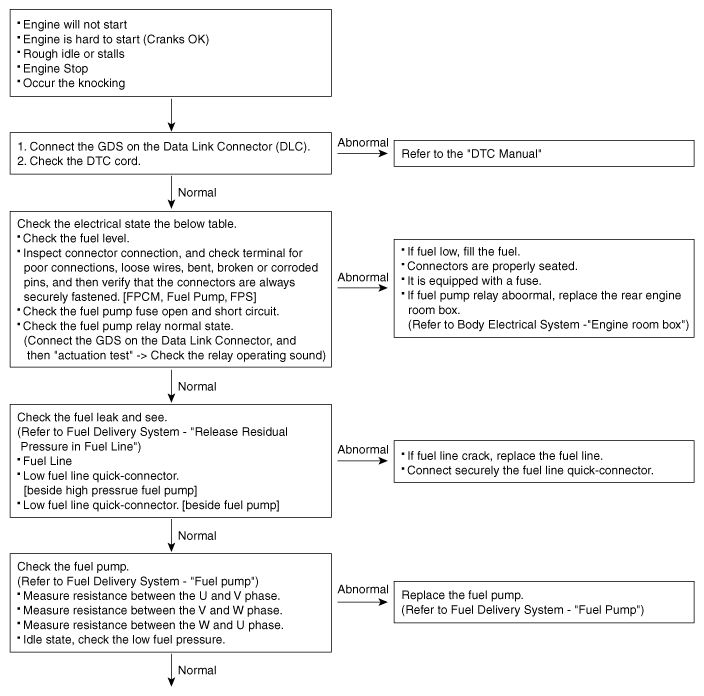

References for flowchart above
DTC INDEXRELAY BOX (ENGINE COMPARTMENT)Fuel Pump

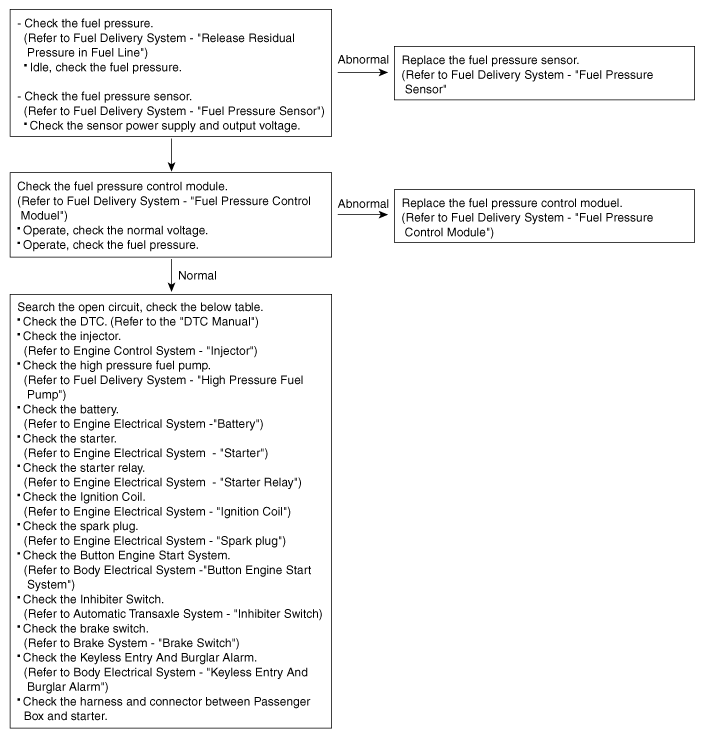

References for flowchart above
Fuel Line , Fuel Pressure sensor , Fuel Pump Control Module , DTC INDEX , INJECTOR , High Pressure Fuel Pump , BATTERY , STARTER , Starter RelayIGNITION COIL ,SPARK PLUGBUTTON ENGINE START SYSTEM ,INHIBITOR SWITCH , Stop Lamp Switch ,KEYLESS ENTRY AND BURGLAR ALARM
CAUTION:
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Check the fuel pressure after replacing parts.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
