Haptic Steering Controller Replacement DTC Code B247100 (19-BE-001-G)
Publication date: 2019-01-01Reference number: 19-BE-001-G
HAPTIC STEERING CONTROLLER REPLACEMENT DTC CODE B247100
TECHNICAL SERVICE BULLETIN
Reference Number(s): 19-BE-001-G, Date of Issue:
January 01, 2019
| HYUNDAI: | 2017-2018 G80 (DH) |
| GROUP: | BODY ELECTRICAL |
DESCRIPTION
HAPTIC STEERING CONTROLLER REPLACEMENT DTC CODE B247100
Some Genesis G80 vehicles may experience a haptic steering warning light with DTC Code B247100 - Vibration Motor Fault code set. This bulletin provides service information and the procedure to replace the haptic controller.
Applicable Vehicles: 2017 - 2018MY Genesis G80 (DH)
PARTS INFORMATION
PARTS INFORMATION
| Parts Name | Part/ | Qty. |
|---|---|---|
| CONTROLLER ASSY - S/WHL HAPTIC | 1EA | |
| 56183-B1000 |
NOTE:

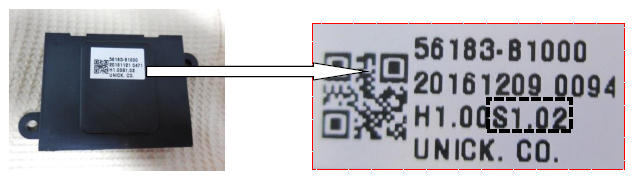

Ensure replacement haptic controller has S1.02 software level.
WARRANTY INFORMATION
WARRANTY INFORMATION
| Model | Op. Code | Operation | Op. Time | Causal Part | Nature Code | Cause Code |
|---|---|---|---|---|---|---|
| G80 (DH) | 56183F00 | HAPTIC CONTROLLER REPLACEMENT | 0.5 | 56183-B1000 | I3A | ZZ6 |
SERVICE PROCEDURE
- Remove the negative battery terminal.NOTE: Save customer radio presets prior to detaching negative battery terminal.NOTE: Battery (-) terminal installation: 4.0 ~ 6.0 N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.0 lb-ft).
- Remove steering wheel per Steering Wheel removal procedure in shop manual.

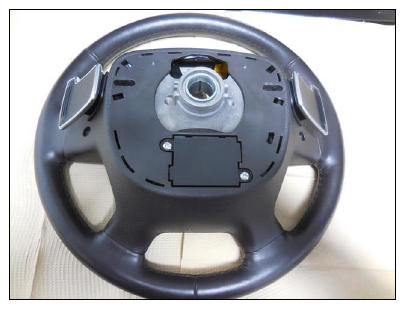

- Place steering wheel face down on a clean surface.

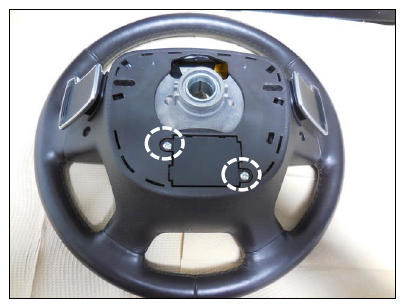

- Loosen haptic controller mounting screws.

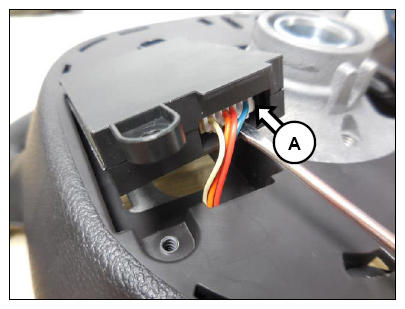

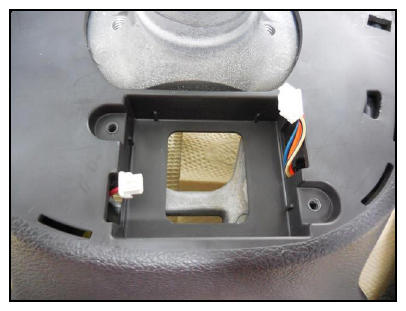

- Disconnect the 2 connectors, one on each side (A) and remove the haptic controller.

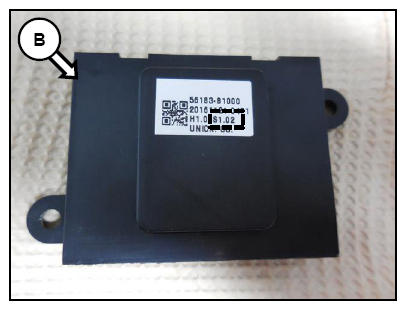

- Install the new haptic controller (B).NOTE: Ensure replacement haptic controller has S1.02 software level.
- Reinstall all the removed parts in reverse order.
Check for DTC codes with GDS and clear after replacement.
Reset all radio presets to previous stations.
