Signal Waveform & Data

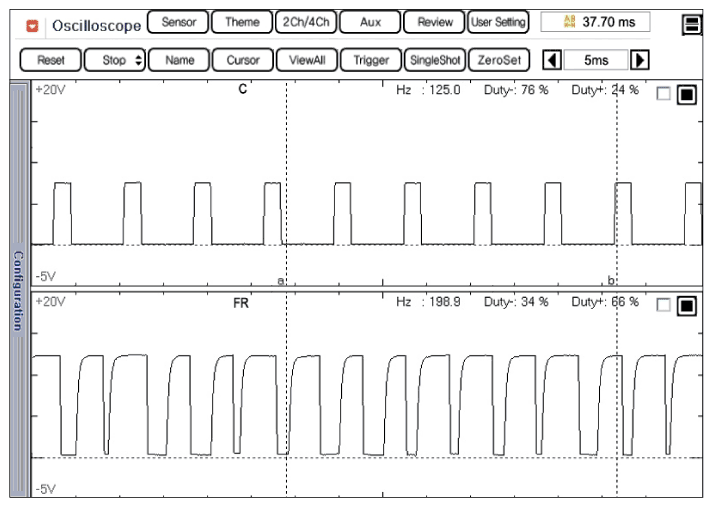

Fig 1: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator Without Electronic Load
G11357751Courtesy of HYUNDAI MOTOR AMERICA

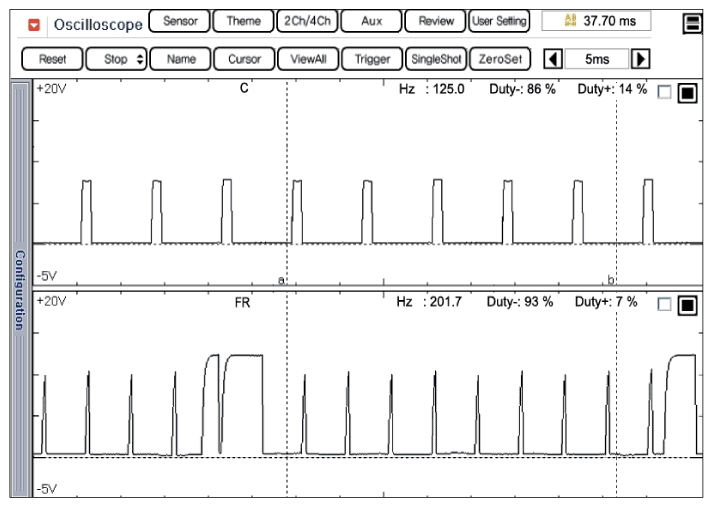

Fig 2: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator With Electronic Load
G11357752Courtesy of HYUNDAI MOTOR AMERICA
