Components and Components Location: Components

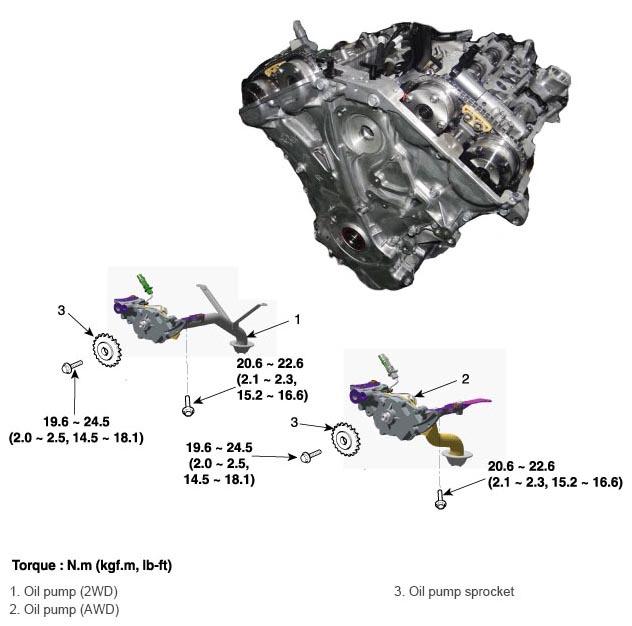

Fig 1: Oil Pump Components With Torque Specifications

G11354695

Courtesy of HYUNDAI MOTOR AMERICA
