Signal Waveform & Data

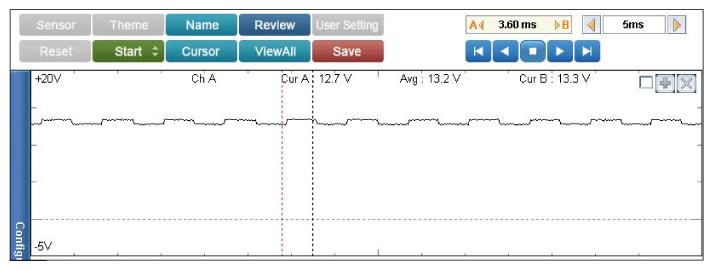

Fig 1: Scantool Display - Normal Waveform Of Wheel Speed Sensor At Idle (High: Approx 13.3V And Low: Approx 12.7V)

Courtesy of HYUNDAI MOTOR AMERICA

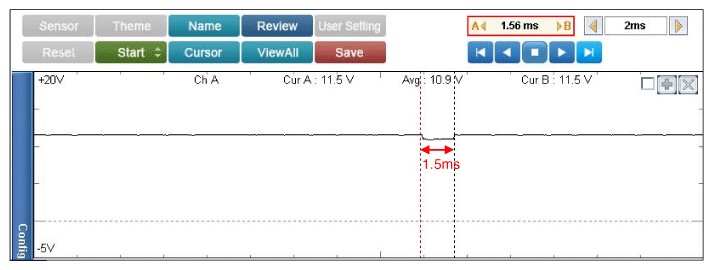

Fig 2: Scantool Display - Normal Waveform Of Smart Type Wheel Speed Sensor At Standing Still

Courtesy of HYUNDAI MOTOR AMERICA

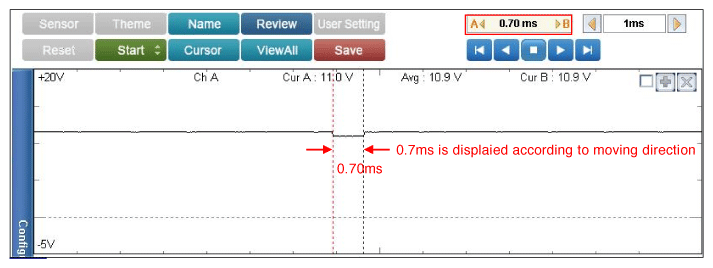

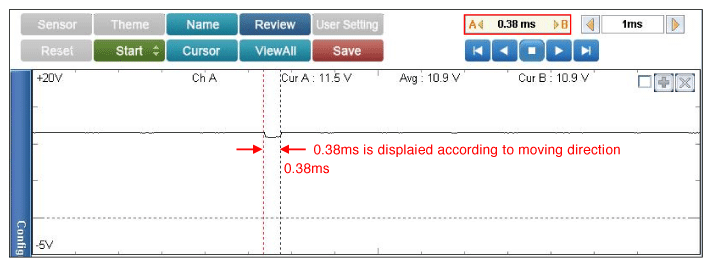

Fig 3: Scantool Display - Normal Waveform Of Smart Type Wheel Speed Sensor According To Moving Condition At IG ON

Courtesy of HYUNDAI MOTOR AMERICA

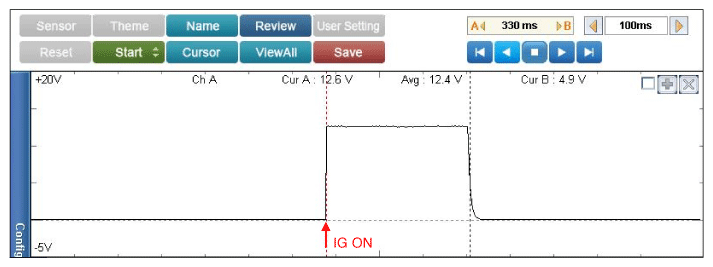

Fig 4: Scantool Display - Normal Waveform At Power Terminal Of Wheel Speed Sensor With Disconnected Connector At IG ON

Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Scantool Display - DTC Status Parameter

Courtesy of HYUNDAI MOTOR AMERICA

Smart type wheel speed sensor is applied to the rear wheel speed sensor of the vehicle equipped SPAS
