Genesis
>>
2017
>>
G80 3.8, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Power Seat Module Diagnosis
>>
DTC B1602-00: CAN Line Error (B-CAN)
>>
Specification
>>

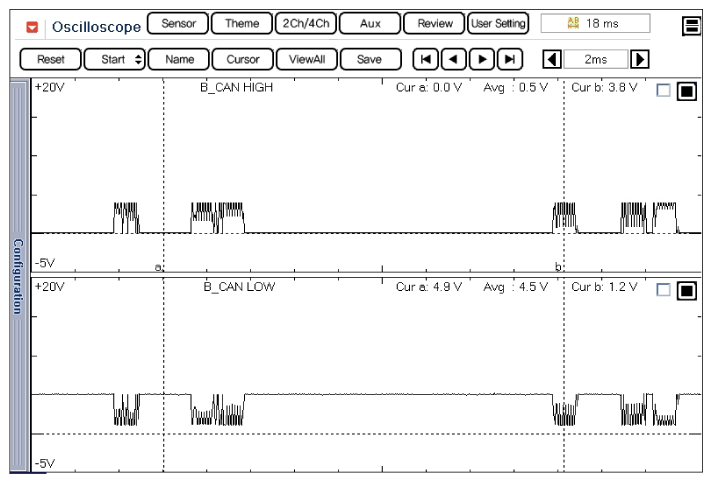

Signal Waveform & Data
Signal Waveform & Data
Courtesy of
Courtesy of
