Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper.

    (Refer to REAR BUMPER Body )

  3. Remove the BSD unit (A) after loosening the mounting nuts.
    G11342760Courtesy of
    G11342761Courtesy of
    NOTE: Take care not to separate the bracket from rear bumper when removing the BSD sensor.

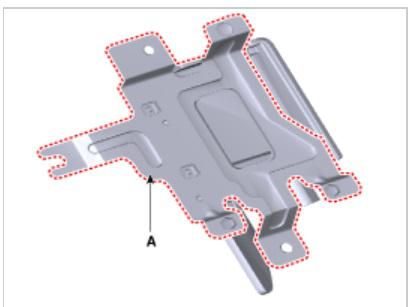

  4. Replace the bracket (A) when the bracket is physically changed or damaged.
    G00571950Courtesy of
    CAUTION: * Radar does not work normally if the bracket is physically changed or damaged.
  5. Replace the extension wiring when it damaged.
