Monitor DTC Status
- Vehicle Parked & Ignition ON.
- Connect GDS and select "DTC Analysis" mode.
- Click "DTC Status" on the "Diagnostic Trouble Codes (DTC)" menu bar to see DTC's information.
- Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
- Read "DTC Status" parameter.
- Is parameter displayed "Present fault"?
YES
- Substitute with a known-good SCC Module and check for proper operation. If the problem is corrected, replace SCC Module and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

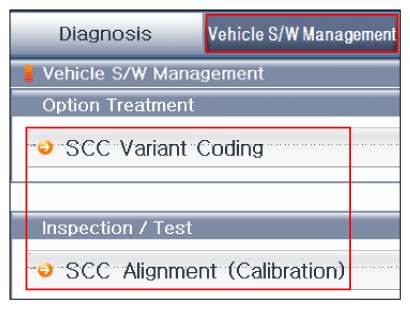

- After replacing with a known-good SCC Module, perform the "VARIANT CODING " and "SCC Alignment" at the "Vehicle S/W Management" mode by using GDS.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- This fault was repaired and SCC Module memory was not cleared. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
