Signal Waveform & Data

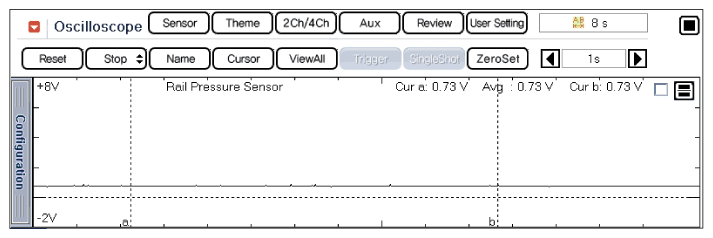

Fig 1: Screen Display - Normal Waveform Of Rail Pressure Sensor At Idle
G11357413Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Screen Display - Normal Waveform Of Rail Pressure Sensor At Acceleration
G11357414Courtesy of HYUNDAI MOTOR AMERICA
