Signal Waveform & Data

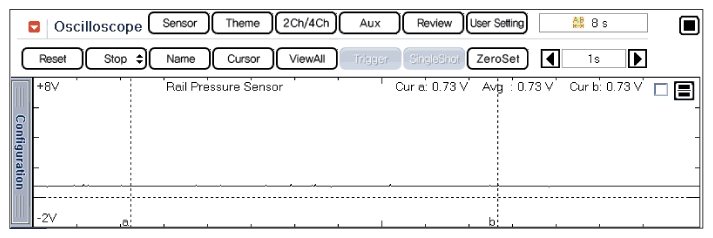

Fig 1: Screen Display - Normal Waveform Of Rail Pressure Sensor At Idle
G11357409Courtesy of HYUNDAI MOTOR AMERICA

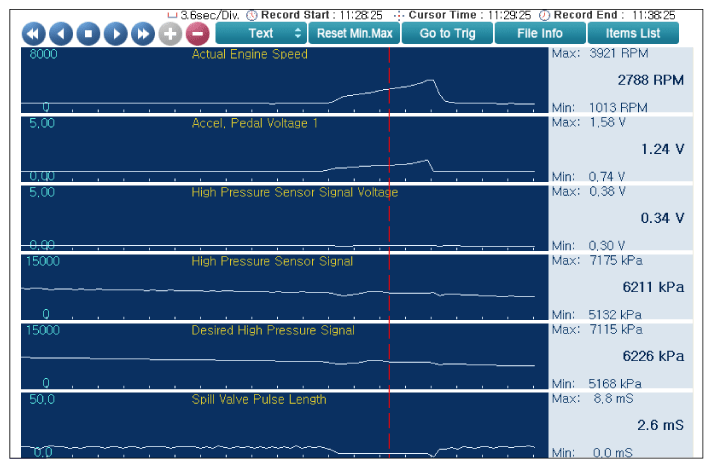

Fig 2: Screen Display - Normal Waveform Of Rail Pressure Sensor At Acceleration
G11357410Courtesy of HYUNDAI MOTOR AMERICA
