Installation Procedure

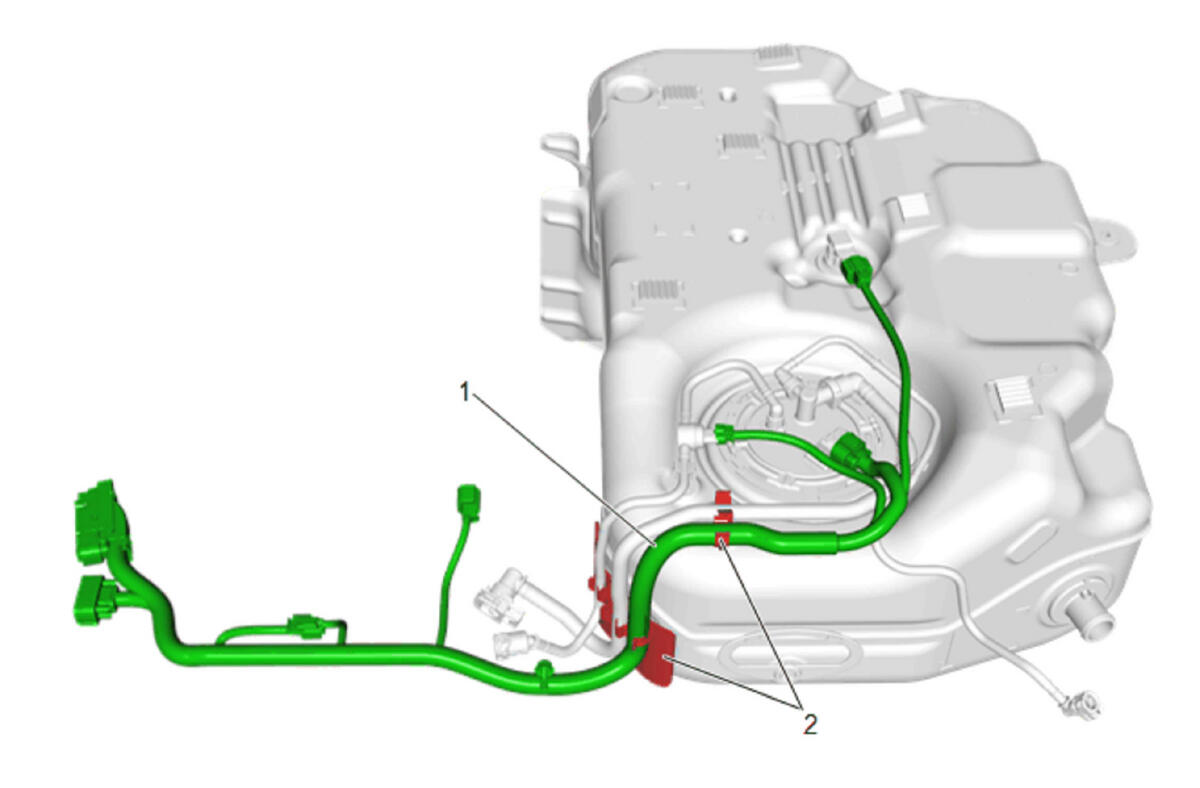

  1. GM6074981Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Fuel Pump Module Wiring Harness (1) - Install

  2. Fuel Tank Fuel Pump Module Wiring Harness (1) @ Fuel Tank Fuel Pump Module Wiring Harness Retainer (2) - Engage [2x]
  3. Connect the electrical connectors.
  4. Fuel Tank - Install - Fuel Tank Replacement (AWD) , or Fuel Tank Replacement (FWD)
