Installation Procedure

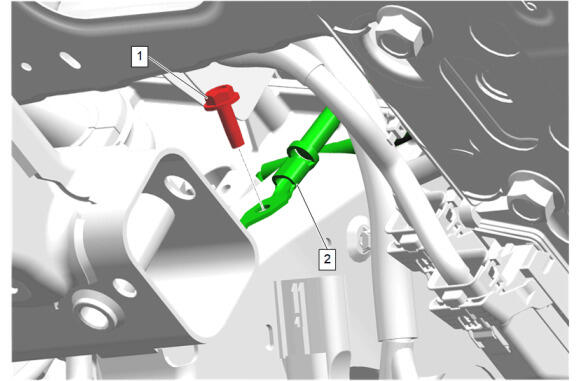

  1. GM6298543Courtesy of GENERAL MOTORS COMPANY

    Starter Generator Positive Extension Cable (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Power Line Communication Module Bolt (1) - Install and tighten - Fastener Specifications

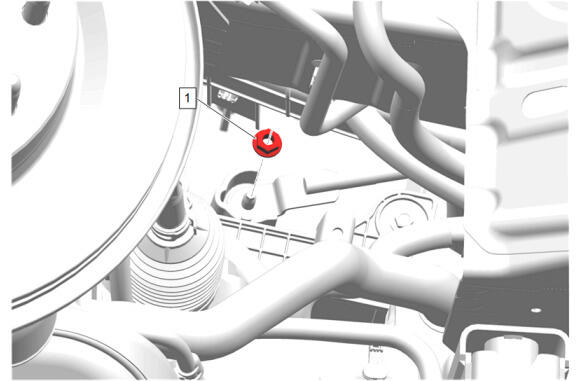

  3. GM6298544Courtesy of GENERAL MOTORS COMPANY

    Power Line Communication Module Nut (1) - Install and tighten - Fastener Specifications

  4. Install underbody panels as necessary. Underbody Panel Component Locator

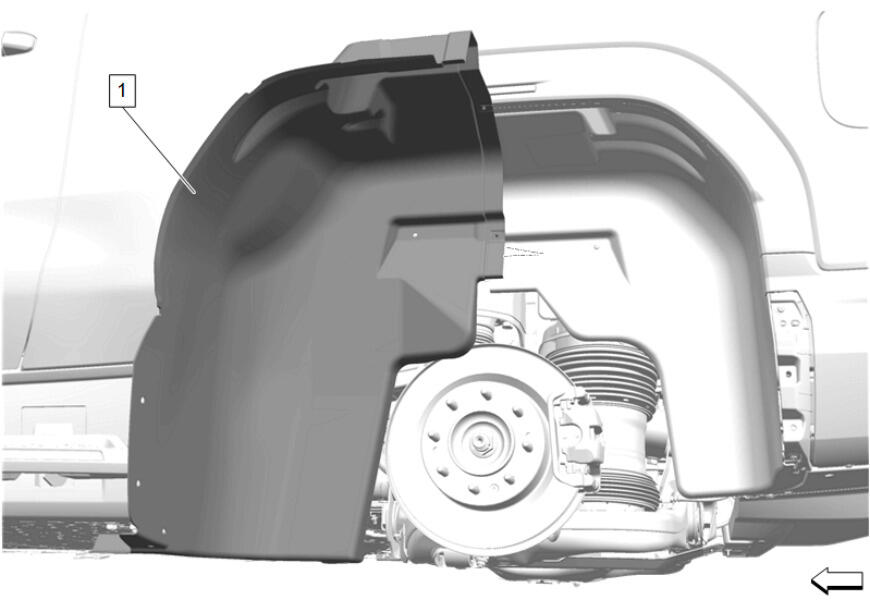

  5. GM6499661Courtesy of GENERAL MOTORS COMPANY

    Rear Wheelhouse Panel Front Liner (1) - Install - Rear Wheelhouse Panel Front Liner Replacement

  6. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
