Installation Procedure

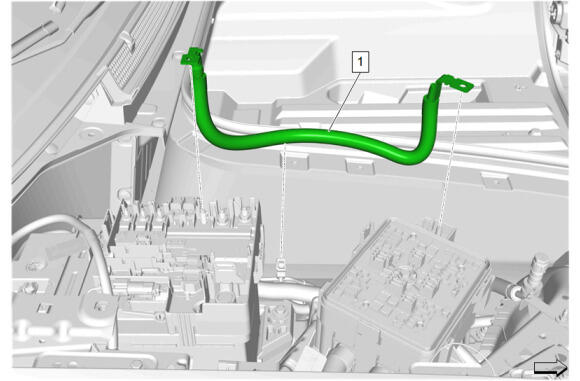

  1. GM6293520Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Junction Block Cable (1) - Install

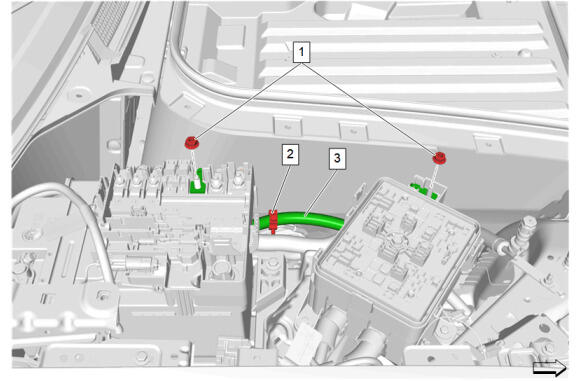

  2. GM6293519Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (2) @Battery Positive Junction Block Cable (3) - Engage

    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Positive Cable Junction Block Lead Nut (1) - Install and tighten [2x] - Fastener Specifications

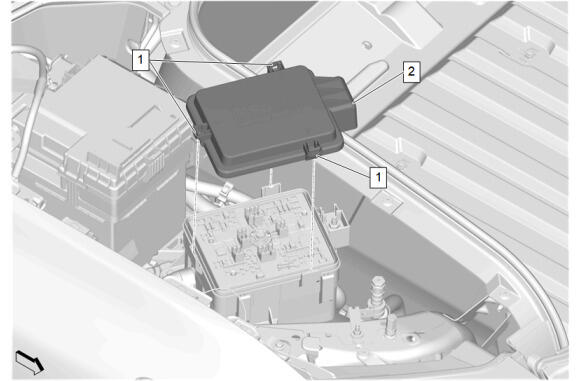

  4. GM6293523Courtesy of GENERAL MOTORS COMPANY

    Fuse Block Cover (2) - Install

  5. Retaining Tab (1) - Engage [3x]

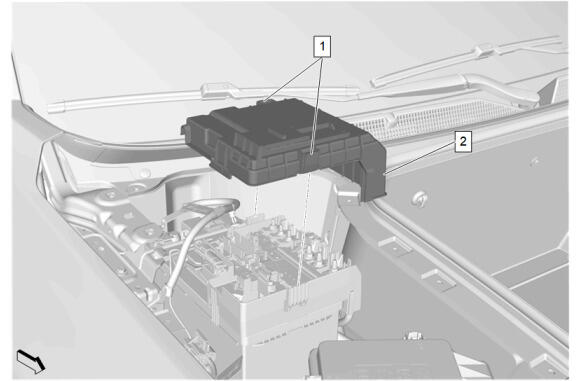

  6. GM6293518Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Fuse Block Cover (2) - Install

  7. Retaining Tab (1) - Engage [2x]
  8. GM6294374Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Rear Sight Shield - Right Side (1) - Install

  9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
