Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

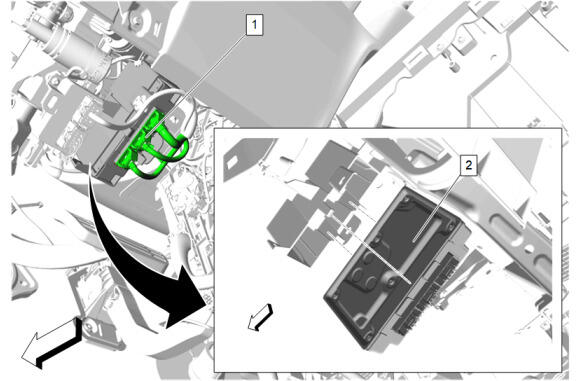

Serial Data Gateway Module (2) - Install
Secure the retaining tabs.
Connect the electrical connectors and position the wiring harness. (1)
Courtesy of GENERAL MOTORS COMPANY

Floor Front Air Outlet Duct - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Floor Front Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Floor Front Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Connect the electrical connector.

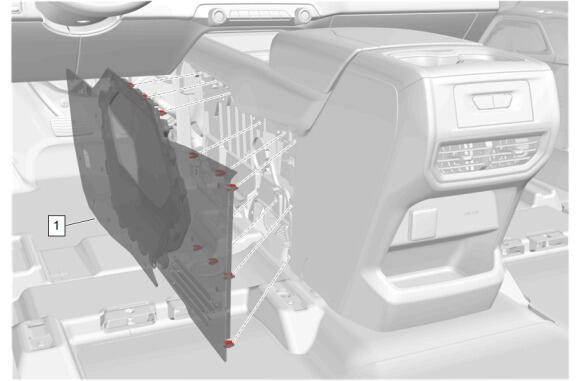

Front Floor Console Extension Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications

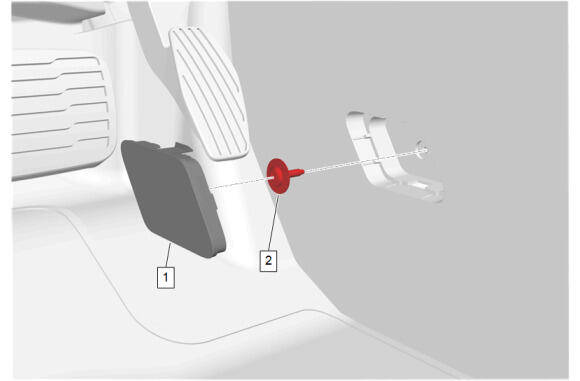

Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

WARNING:
When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

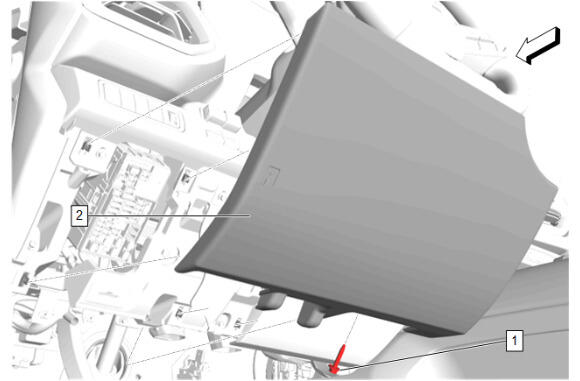

Instrument Panel Knee Bolster (2) - Install
Instrument Panel Knee Bolster Bolt (1) - Install and tighten - Fastener Specifications
Front Seat - Left Side - Install - Front Seat Removal and Installation
Perform the necessary programming and setup procedure: Control Module References
