Installation Procedure

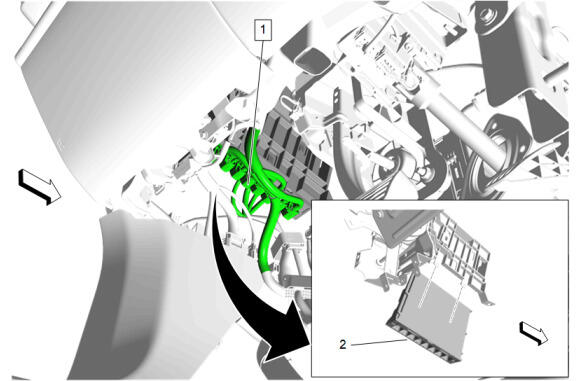

  1. GM6294190Courtesy of GENERAL MOTORS COMPANY

    Body Control Module (2) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connectors and position the wiring harness. (1)
  4. Perform the necessary programming and setup procedure: Control Module References
