Installation Procedure

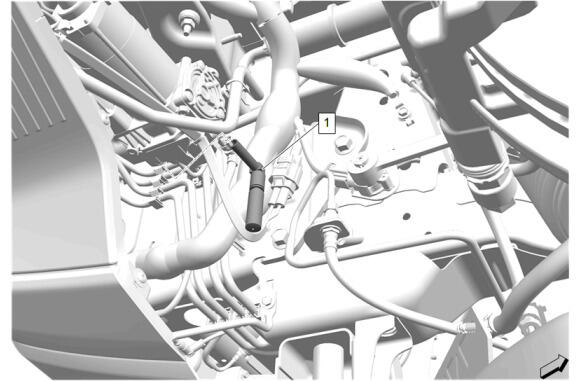

Install the automatic level control air compressor tube (1).
Rear Wheelhouse Panel Rear Liner- Right Side (3) - Install
- Rear Wheelhouse Liner Bolt- Right Side (1) - Install and tighten [9x] - Fastener Specifications
- Rear Wheelhouse Liner Retainer- Right Side (2) - Install
- Install the right rear tire and wheel assembly. Tire and Wheel Removal and Installation
CAUTION:
Refer to Fastener Caution
NOTE:
Left side shown, right side similar.
