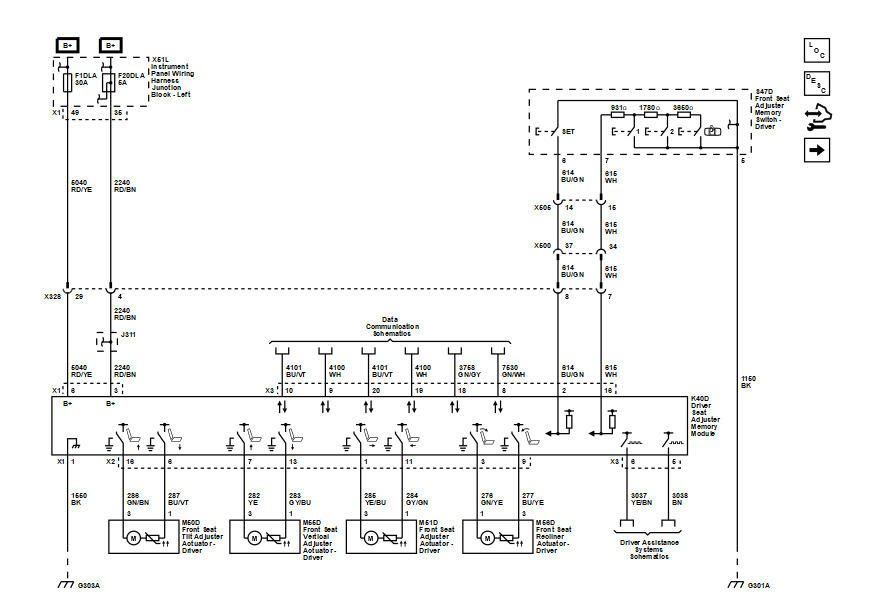

Memory Module Power, Ground, Serial Data, Position Motors, and Memory Controls

GM6124383

Courtesy of GENERAL MOTORS COMPANY
