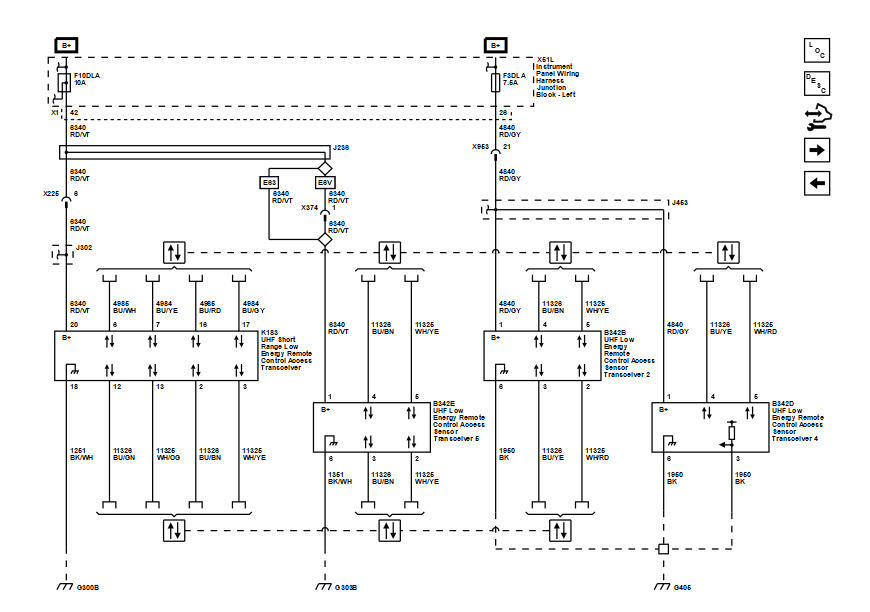

Home >> GMC >> 2024 >> Hummer EV 2 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Virtual Key - 1 of 2
