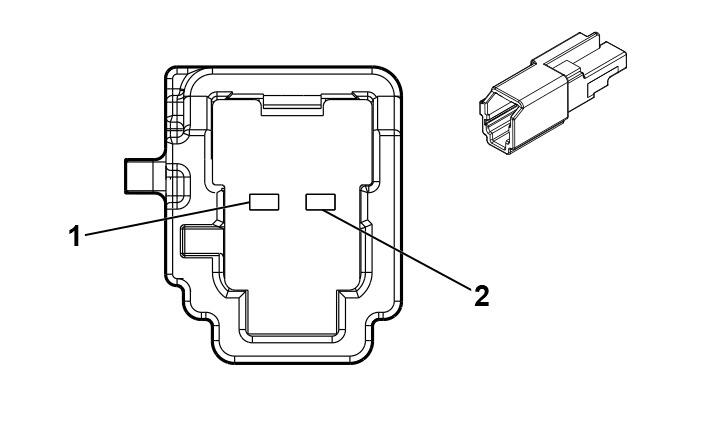

B355 Communication Interface Module Microphone
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Roof Wiring Harness
- OEM Connector: 6098-9073
- Service Connector: 84847259
- Description: 2-Way M 1.2 MCON Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-17 (L-GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU / BK |
7044 |
Microphone [-] Signal |
I |
- |
| 2 |
0.35 |
VT / YE |
7043 |
Microphone [+] Signal |
I |
- |
