Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

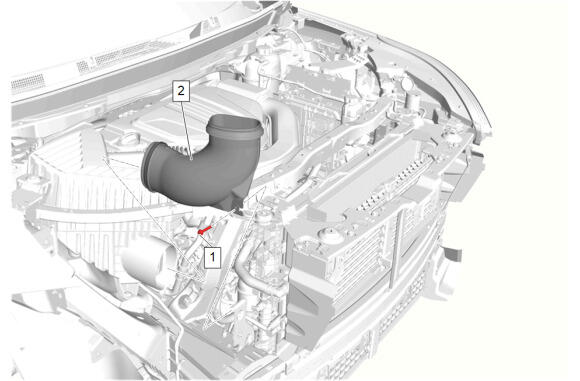

Intake Air Duct (2) - Install

CAUTION:

Refer to Fastener Caution .

Intake Air Duct Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install the air cleaner assembly to the retainers.

Air Cleaner Assembly (1) - Install
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct Clamp (1) - Tighten
