Installation Procedure

CAUTION:

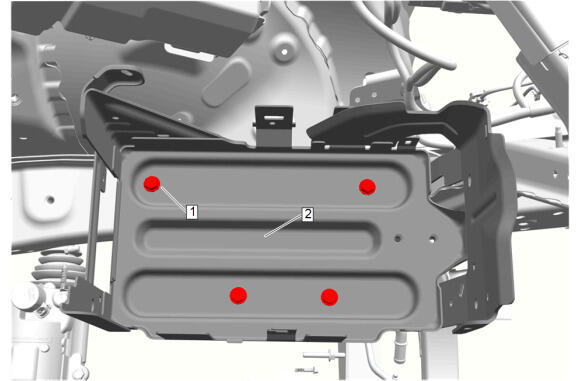

Battery Tray Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Battery Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Battery (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Battery Hold Down Retainer (2) - Install
Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Battery Hold Down Retainer (3) - Install
Install the electrical connector (2).
Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Engine Control Module Bracket (2) - Install
Battery Hold Down Retainer Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Battery Distribution Engine Compartment Fuse Block (5) - Install
Connect the electrical connector.
Install wiring harness terminals.
Battery Negative Post Clamp Nut (4) - Install and tighten - Fastener Specifications
Battery Positive Cable Junction Block Nut (3) - Install and tighten [2x] - Fastener Specifications
Engine Wiring Harness Fuse Block Nut (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Power Distributor Fuse Block Cover (1) - Install
Connect the electrical connectors.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
