Installation Procedure

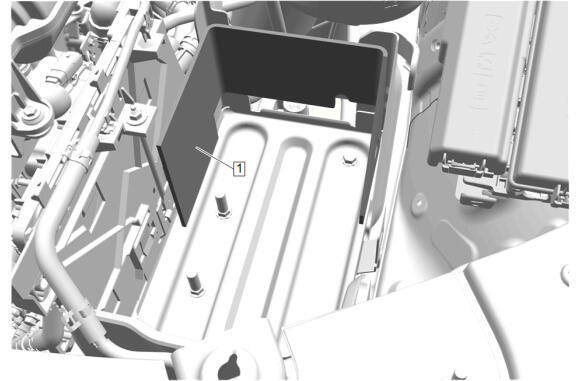

  1. GM6380295Courtesy of GENERAL MOTORS COMPANY

    Battery Cover (1) - Install

  2. GM6380302Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Install

  3. GM6380301Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (2) - Install

    4. CAUTION:

    Refer to Fastener Caution

  4. Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications
  5. GM6382356Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (3) - Install

  6. Install the electrical connector (2).
  7. Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications
  8. GM6380304Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket (2) - Install

  9. Battery Hold Down Retainer Nut (1) - Install and tighten - Fastener Specifications
  10. GM6382840Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block (5) - Install

  11. Connect the electrical connector.
  12. Install wiring harness terminals.
  13. Battery Negative Post Clamp Nut (4) - Install and tighten - Fastener Specifications
  14. Battery Positive Cable Junction Block Nut (3) - Install and tighten [2x] - Fastener Specifications
  15. Engine Wiring Harness Fuse Block Nut (2) - Install and tighten [2x] - Fastener Specifications
  16. Body Front Wiring Harness Nut (1) - Install and tighten [5x] - Fastener Specifications
  17. GM6382817Courtesy of GENERAL MOTORS COMPANY

    Power Distributor Fuse Block Cover (1) - Install

  18. Connect the electrical connectors as necessary.
  19. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
