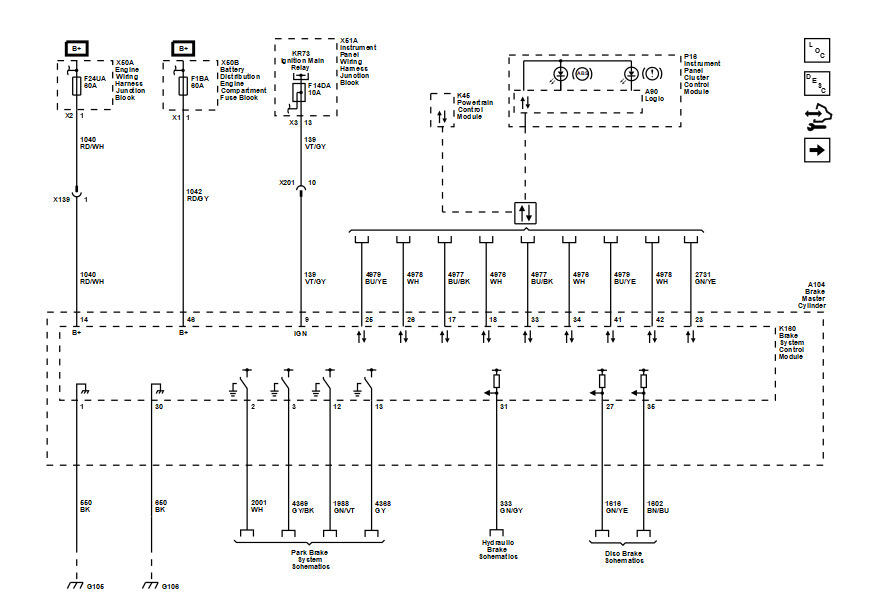

Module Power, Ground, Serial Data, Indicators, and Subsystem References

GM6460692

Courtesy of GENERAL MOTORS COMPANY
