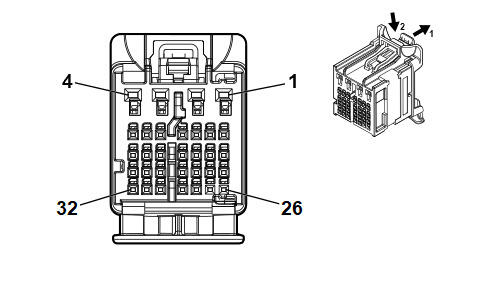

K124 Image Processing Module X2
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 13534978
- Service Connector: 13534978
- Description: 32-Way F 0.5 NANO, 1.2 MCON, stAK50h Series (GY with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| II |
Service by Cable |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 6 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 7 |
0.35 |
BU / YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 8 |
0.35 |
BU / YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 9 |
0.35 |
WH / GY |
4104 |
AUTOSAR CAN Bus [-] 8 Serial Data |
I |
UKL |
| 10 |
0.35 |
BU / GY |
4105 |
AUTOSAR CAN Bus [+] 8 Serial Data |
I |
UKL |
| 11 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 14 |
0.35 |
BU / YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 15 |
0.35 |
WH / GY |
4104 |
AUTOSAR CAN Bus [-] 8 Serial Data |
I |
UKL |
| 16 |
0.35 |
WH / GY |
4104 |
AUTOSAR CAN Bus [-] 8 Serial Data |
I |
UKL |
| 17 |
0.35 |
BU / GY |
4105 |
AUTOSAR CAN Bus [+] 8 Serial Data |
I |
UKL |
| 18 |
0.35 |
BU / GY |
4105 |
AUTOSAR CAN Bus [+] 8 Serial Data |
I |
UKL |
| 19 - 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.35 |
BU / YE |
8977 |
Private Serial Data Active Safety CAN Bus [+] Serial Data |
II |
UKL |
| 22 |
0.35 |
WH / YE |
8976 |
Private Serial Data Active Safety CAN Bus [-] Serial Data |
II |
UKL |
| 23 - 32 |
- |
- |
- |
Not Occupied |
- |
- |
