Installation Procedure

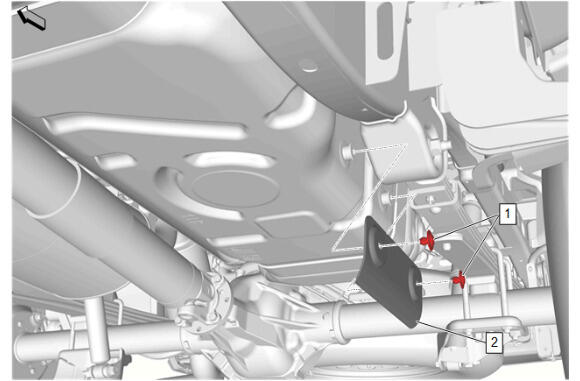

  1. GM6142333Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Shield (2) - Install

  2. Fuel Tank Shield Retainer (1) - Install [2x]
  3. Remove the support and lower the vehicle.
