Intake Air Splash Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

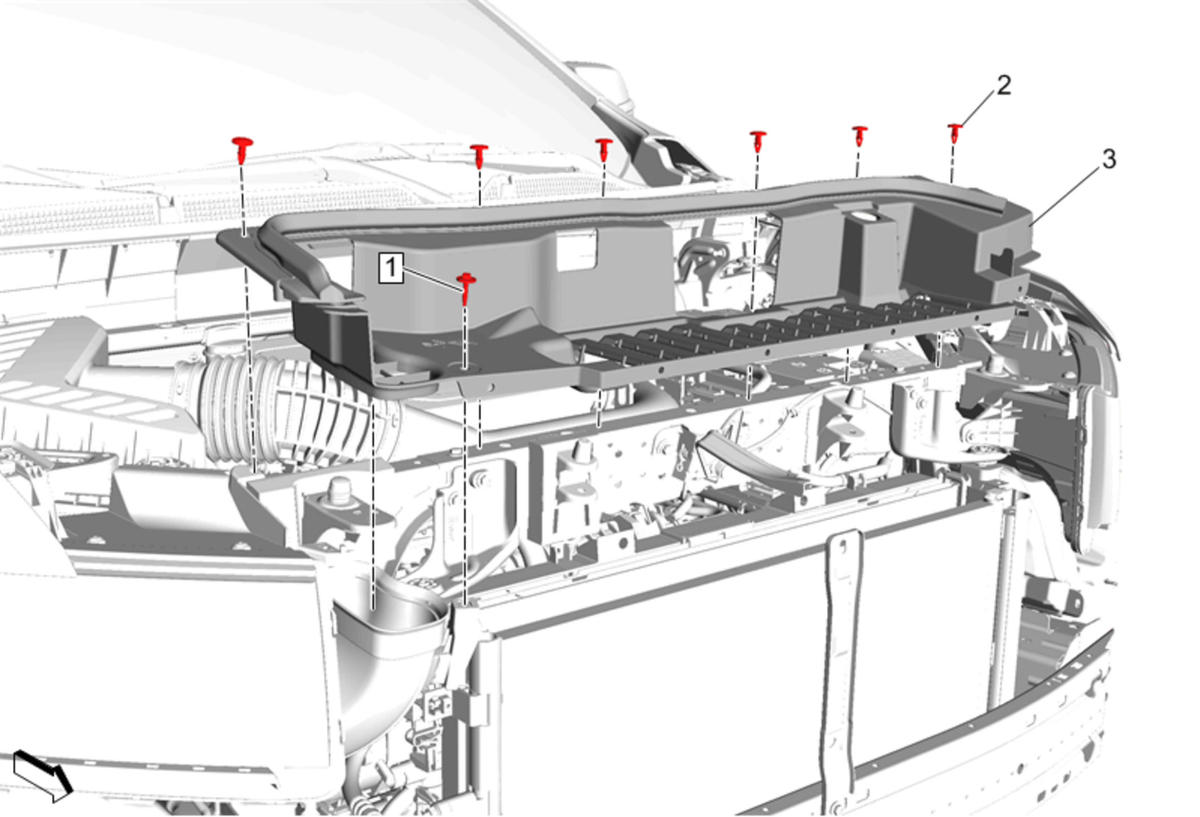

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Center Support Replacement - Upper
1	Intake Air Duct Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Intake Air Splash Shield Retainer [6x]
3	Intake Air Splash Shield
