Engine Oil Temperature Sensor Replacement (AWD)

Courtesy of GENERAL MOTORS COMPANY

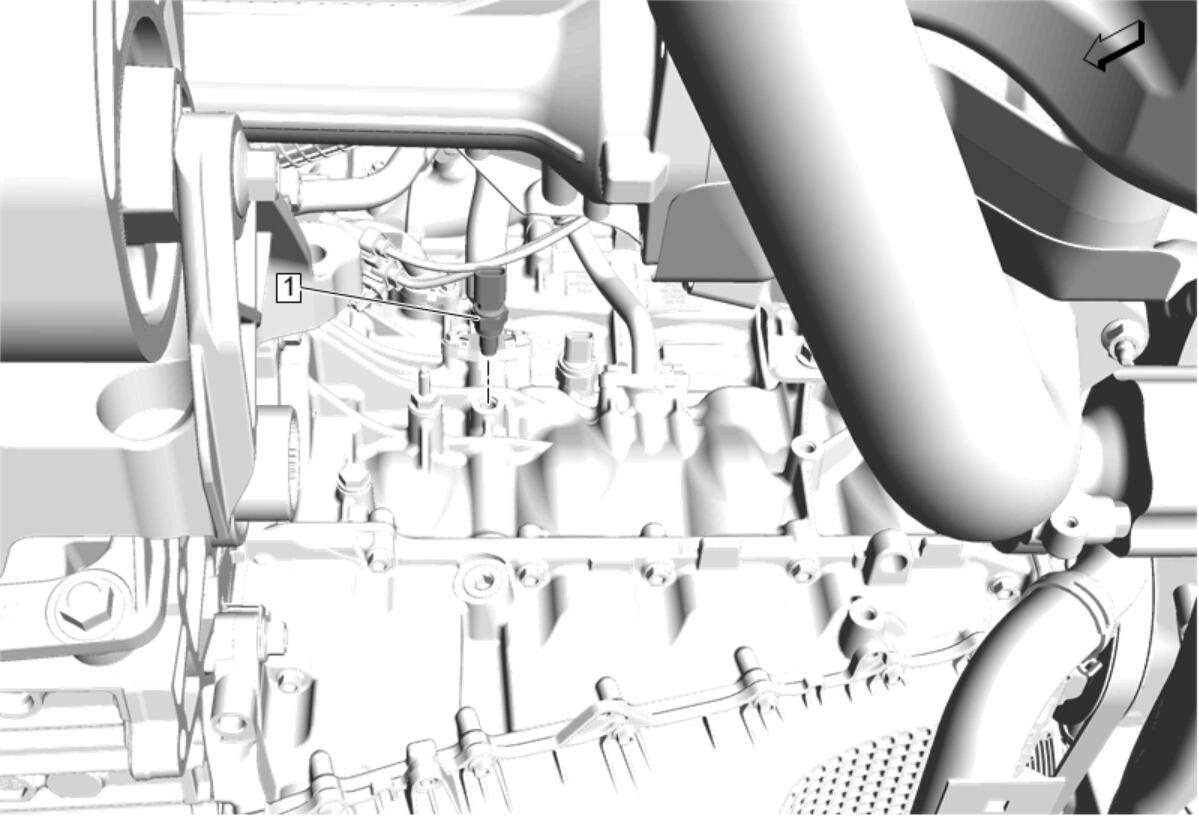

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Exhaust Front Pipe Replacement (LSY)
1	Engine Oil Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. Tighten 20 N.m (15 lb ft)

Callout

Component Name

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Preliminary Procedures

Engine Oil Temperature Sensor

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
20 N.m (15 lb ft)
