Rear Closure Hands Free Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

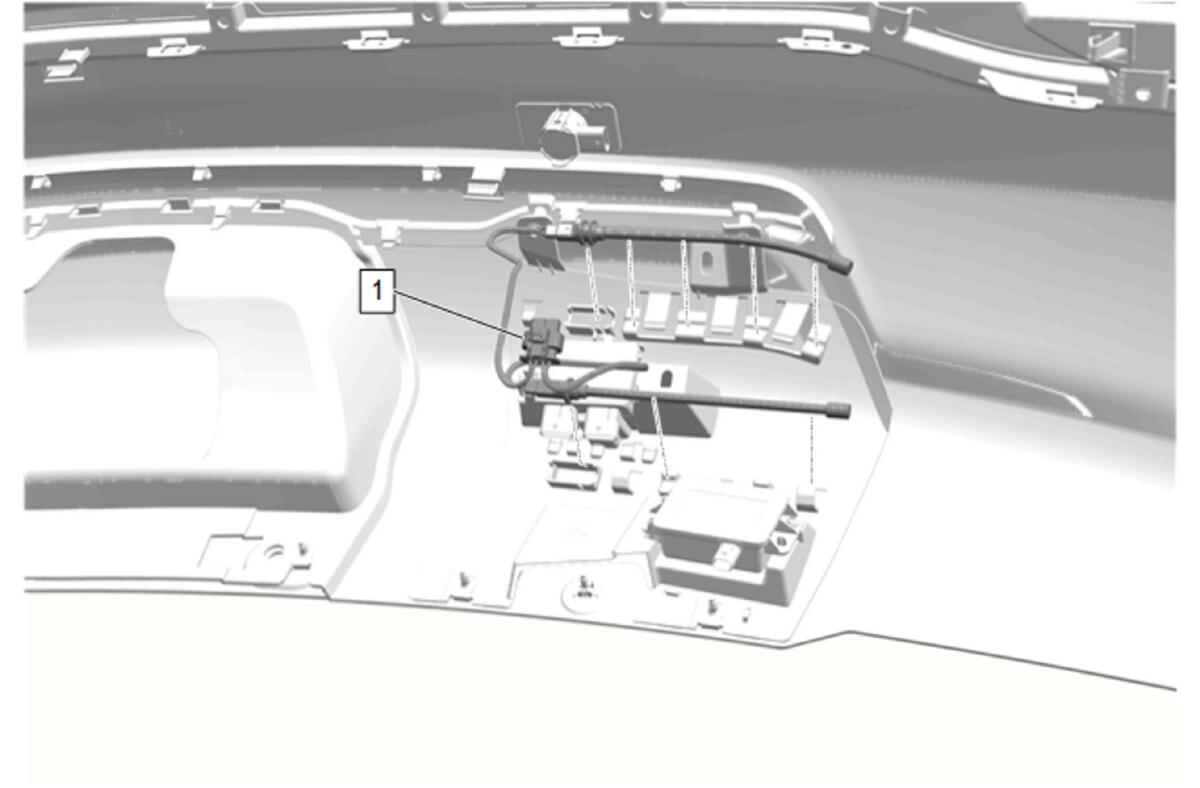

Callout	Component Name
Preliminary Procedure Remove the 2 rear bumper fascia lower bolts to gain access to hands free sensor. Rear Bumper Fascia Replacement (Equinox)Rear Bumper Fascia Replacement (Terrain)
1	Rear Closure Hands Free Sensor Procedure Disconnect the electrical connector. Disconnect the wire at both ends of the sensor. Pull back on each tab, and apply slight force on sensor to push the sensor out of the tabs.

Callout

Component Name

Preliminary Procedure
Remove the 2 rear bumper fascia lower bolts to gain access to hands free sensor. Rear Bumper Fascia Replacement (Equinox)Rear Bumper Fascia Replacement (Terrain)

Rear Closure Hands Free Sensor

Procedure

Disconnect the electrical connector.
Disconnect the wire at both ends of the sensor.
Pull back on each tab, and apply slight force on sensor to push the sensor out of the tabs.
