Installation Procedure

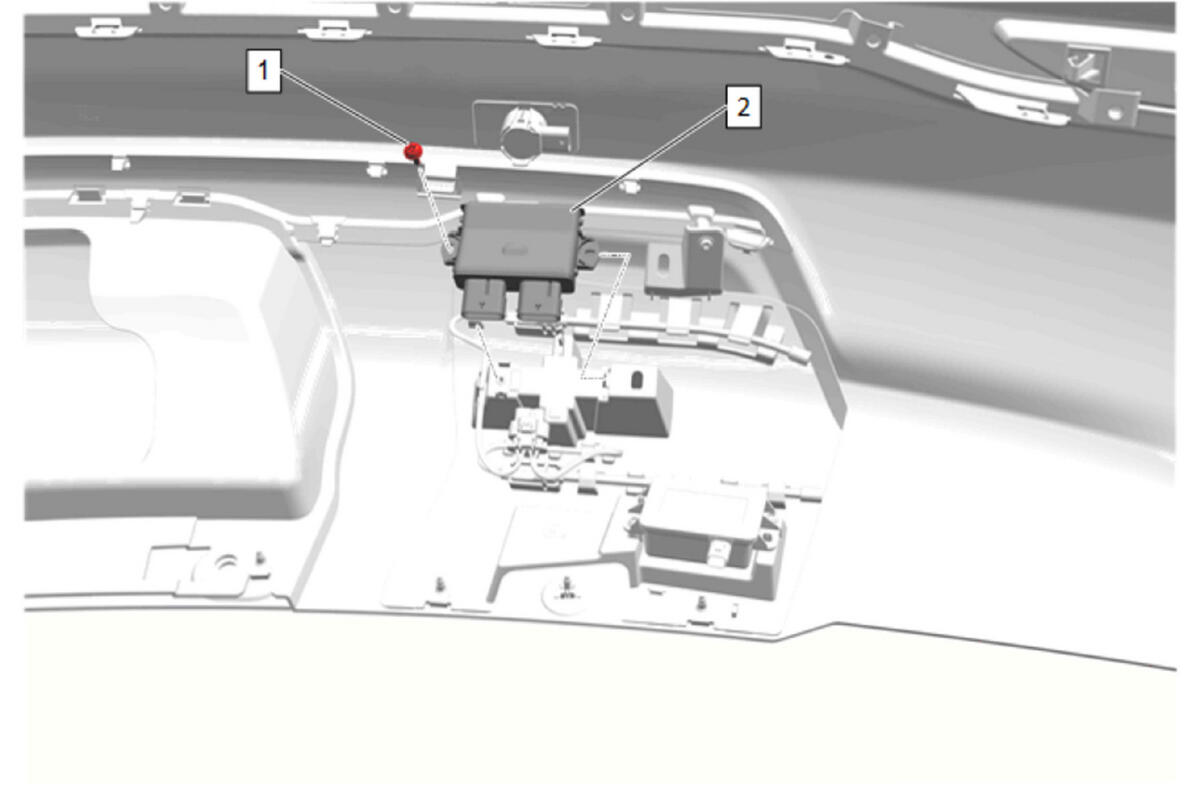

  1. GM5710222Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Rear Closure Hands Free Module (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Rear Closure Hands Free Module Bolt (1) - Install and tighten 2.5N.m (22 lb in)

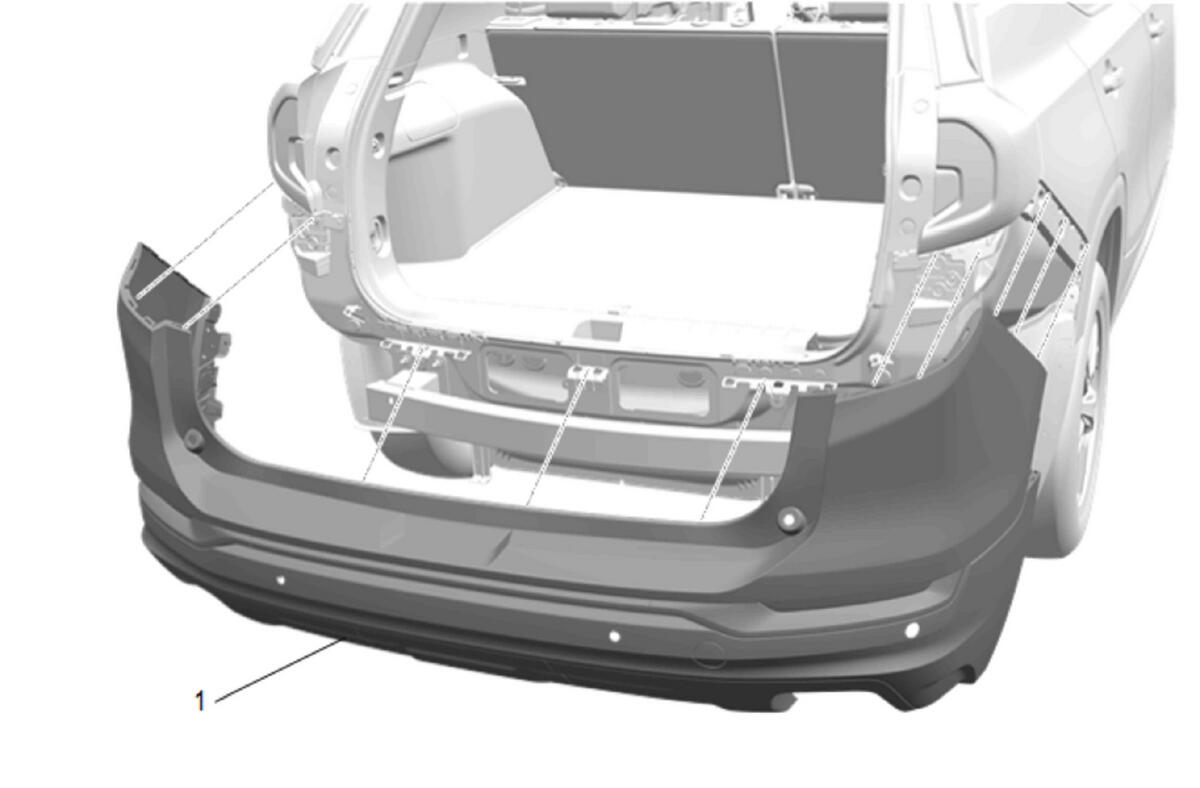

  4. GM5721573Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Replacement (Equinox)Rear Bumper Fascia Replacement (Terrain)

  5. Perform the necessary programming and setup procedure:Control Module References
