Removal Procedure

Open the pickup box auxiliary endgate step.

Courtesy of GENERAL MOTORS COMPANY
NOTE:
Left side shown, right side similar.

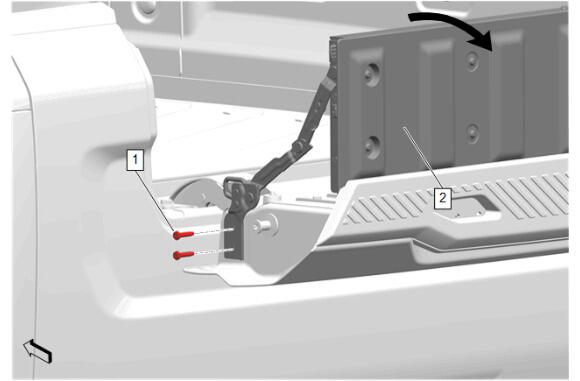

Pickup Box Auxiliary Endgate Hinge Bolt- Left Side and Right Side (1) - Remove [4x]
Pickup Box Auxiliary Endgate Step (2) - Reposition
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Pickup Box Endgate Inner Panel Access Hole Plug (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Use a trim type release tool, disengage the locking tabs of the pickup box endgate molding (1).
Pickup Box Endgate Molding (1) - Remove
Clean any remaining residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Wipe surface dry with a clean lint-free towel.

Courtesy of GENERAL MOTORS COMPANY
Rear Closure Center Applique Bolt (2) - Remove [6x]
Rear Closure Fixed Handle Applique (1) - Remove

Courtesy of GENERAL MOTORS COMPANY
NOTE:
Some components not shown for graphic clarity.

Using the appropriate trim tool, remove the left side pickup box endgate access hole cover panel (2) to gain access to the wiring harness.
Electrical Connector (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Rear Closure Signal Lamp Nut (1) - Remove [4x]
High Mount Stop Lamp (2) - Remove

Courtesy of GENERAL MOTORS COMPANY
Note the position of the 2 wires (1) in the connector prior to removal.
Remove the 2 wires (1) from the connector (2). Terminal Removal
Courtesy of GENERAL MOTORS COMPANY

Pickup Box Endgate Latch Handle Bolt (1) - Remove [3x]
Pickup Box Endgate Latch Handle (2) - Remove
