Installation Procedure

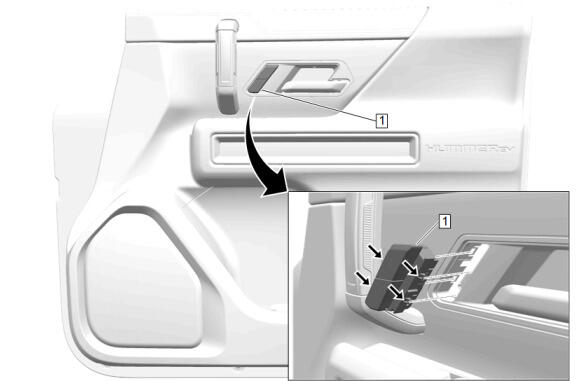

  1. GM5912066Courtesy of GENERAL MOTORS COMPANY

    Door Lock Switch - Passenger Front (1) - Install

  2. Connect the electrical connector.

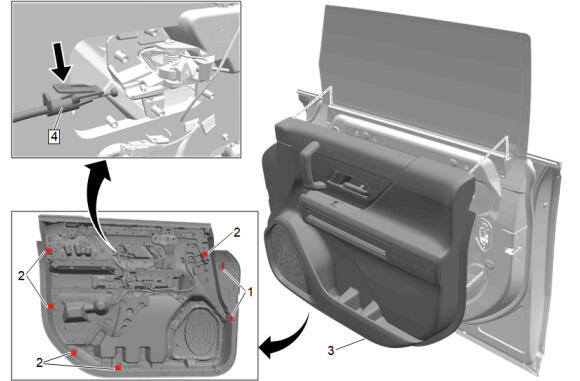

  3. GM5912067Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Trim (3) - Install - Front Side Door Trim Removal and Installation (Without Front Side Door Trim Bolt Cap) , or Front Side Door Trim Removal and Installation (With Front Side Door Trim Bolt Cap)
