Engine Oil Temperature Sensor Replacement (FWD)

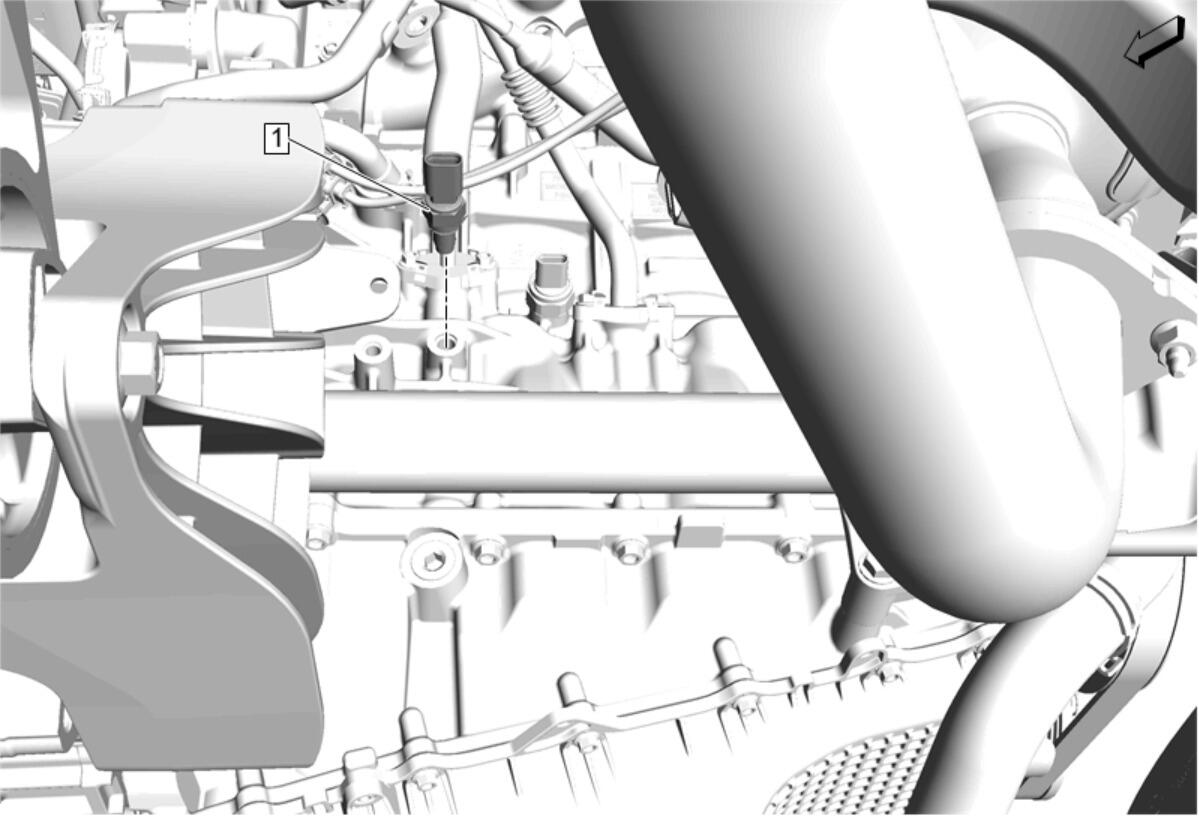

GM5286731Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1 Engine Oil Temperature Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .


Procedure
Disconnect the electrical connector.
Tighten
20 N.m (15 lb ft)
