Crankcase Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

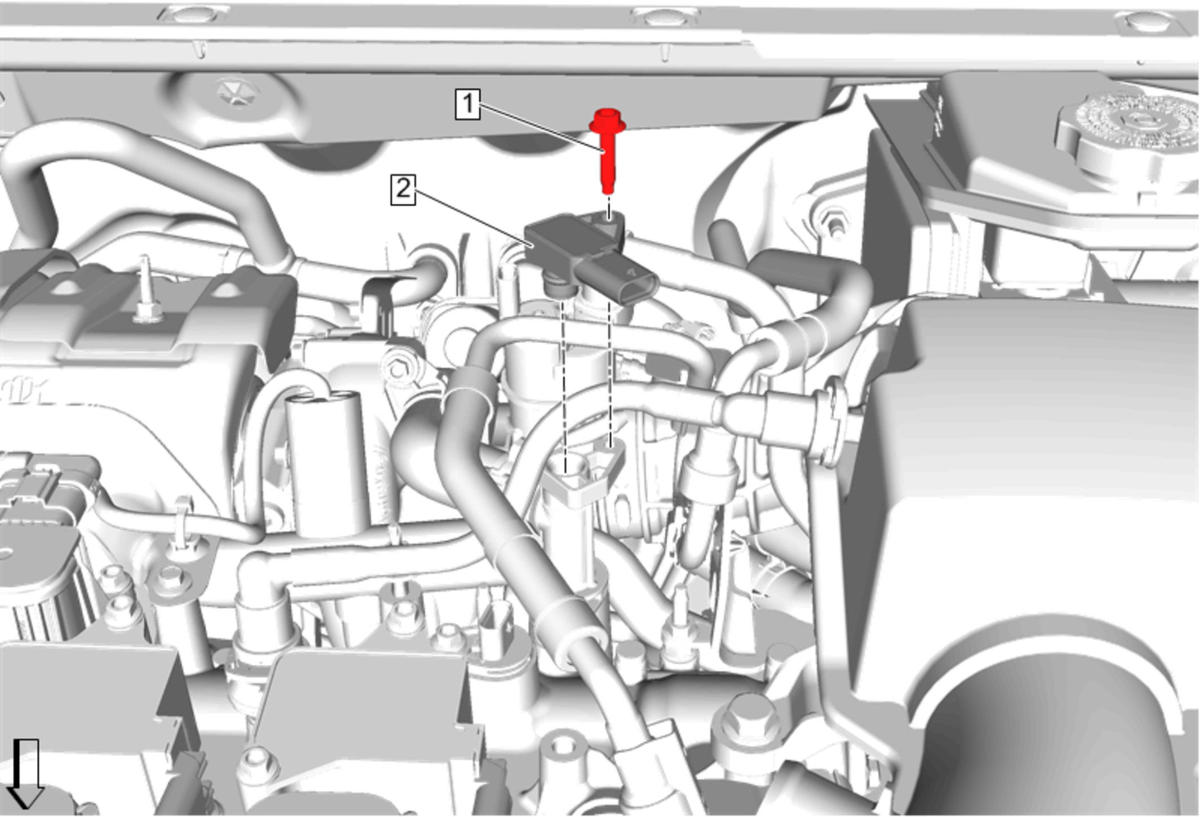

Callout	Component Name
Preliminary Procedure  Air Cleaner Outlet Resonator Replacement
1	Crankcase Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten  8.5 N.m (75 lb in)
2	Crankcase Pressure Sensor Procedure  Disconnect the crankcase pressure sensor electrical wiring harness connector.
