Q97B Engine Coolant Flow Control Valve - Block (LSY)
 Courtesy of GENERAL MOTORS COMPANY
|

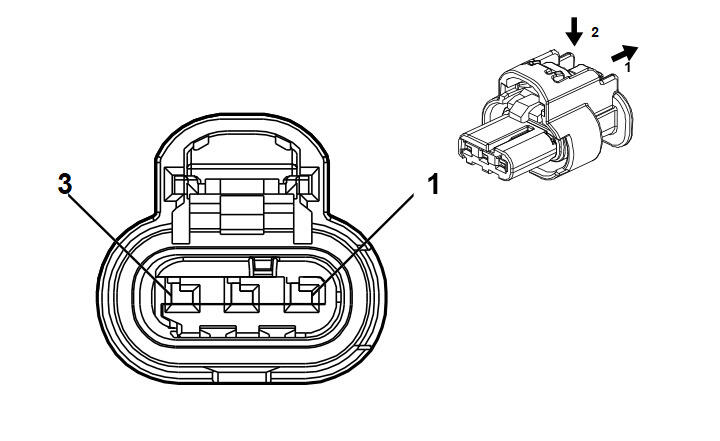

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13514591
- Service Connector: 19371206
- Description: 3-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-12 (BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN / BK |
4624 |
Rear Seat Adjuster Memory Module - Right LIN Bus 2 |
I |
LSY |
| 2 |
0.5 |
BK |
550 |
Ground |
I |
LSY |
| 3 |
0.5 |
VT / BU |
5294 |
Powertrain Main Relay Fused Supply Voltage 5 |
I |
LSY |
