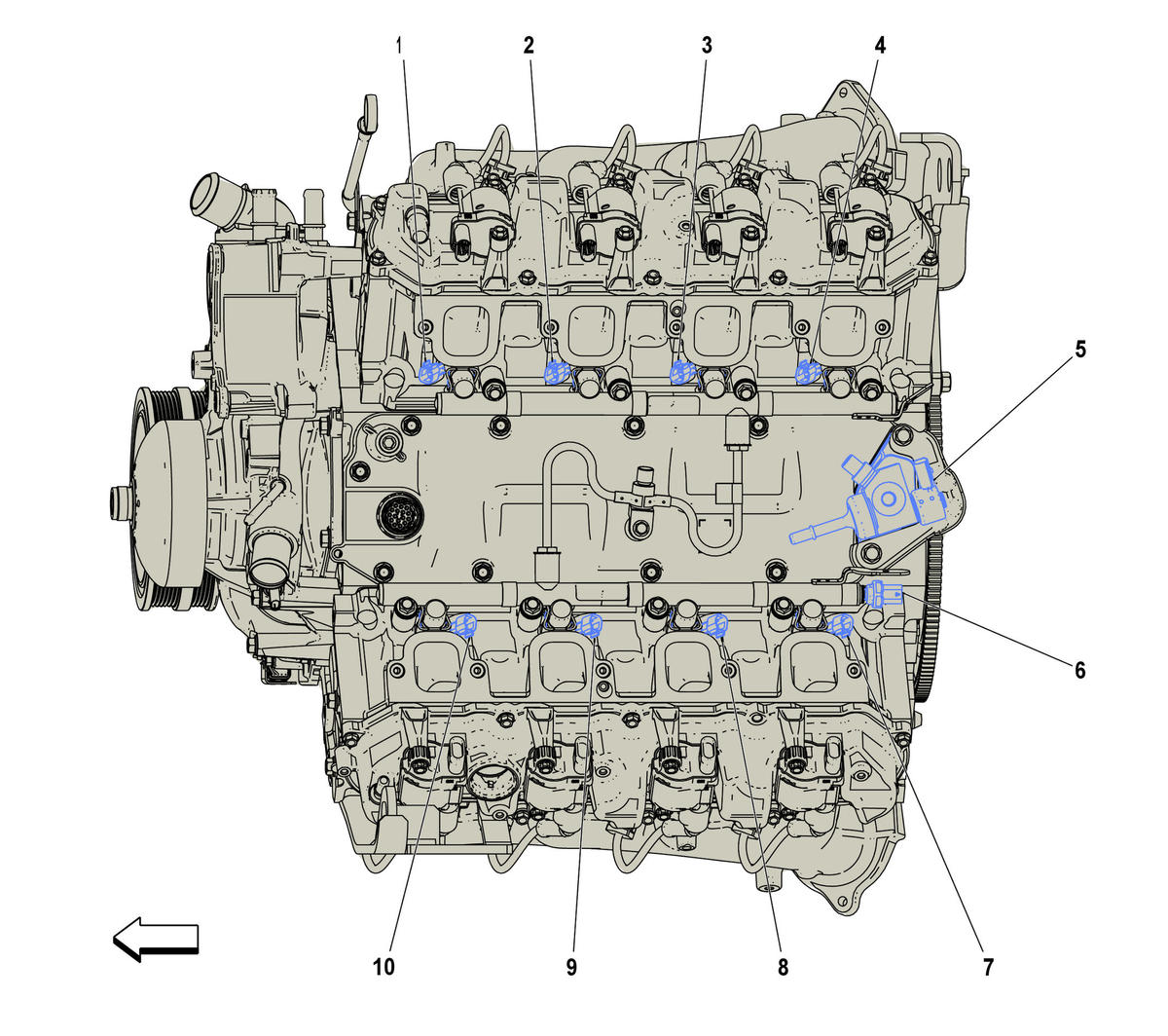

Engine Components - Top (L84/L87)
Engine Components - Top (L84/L87)
| Component Name | Callout |
|---|---|
| Q17B Fuel Injector 2 Q17B Fuel Injector 2 (L84/L87) | 1 |
| Q17D Fuel Injector 4 Q17D Fuel Injector 4 (L84/L87) | 2 |
| Q17F Fuel Injector 6 Q17F Fuel Injector 6 (L84/L87) | 3 |
| Q17H Fuel Injector 8 (L84/L87) Q17H Fuel Injector 8 (L84/L87) | 4 |
| G18 Fuel Pump - High Pressure G18 Fuel Pump - High Pressure (L84/L87) | 5 |
| B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor (L84/L87) | 6 |
| Q17G Fuel Injector 7 (L84/L87) Q17G Fuel Injector 7 (L84/L87) | 7 |
| Q17E Fuel Injector 5 Q17E Fuel Injector 5 (L84/L87) | 8 |
| Q17C Fuel Injector 3 Q17C Fuel Injector 3 (L84/L87) | 9 |
| Q17A Fuel Injector 1 Q17A Fuel Injector 1 (L84/L87) | 10 |
