Fastener Specifications

WARNING: This page is about a different variant/trim than selected.
GM5601017Courtesy of GENERAL MOTORS COMPANY
Accelerator Pedal

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Accelerator Pedal Nut [ 2x ] - - 9 N.m (80 lb/in) Accelerator Pedal Replacement

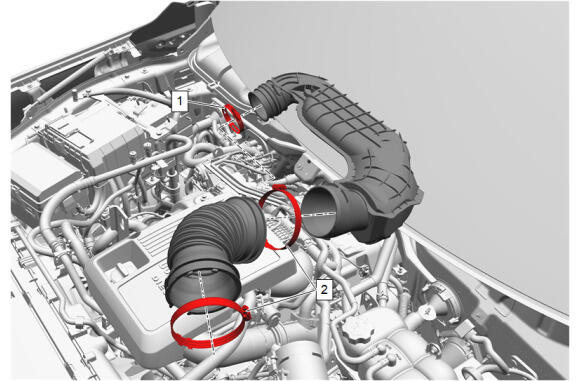

GM5617836Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Outlet Duct and Air Cleaner Outlet Front Duct

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Cleaner Outlet Duct Clamp - - 5 N.m (44 lb/in) Air Cleaner Outlet Duct Replacement
2 Air Cleaner Outlet Duct Clamp [ 2x ] - - 5 N.m (44 lb/in) Air Cleaner Outlet Front Duct Replacement

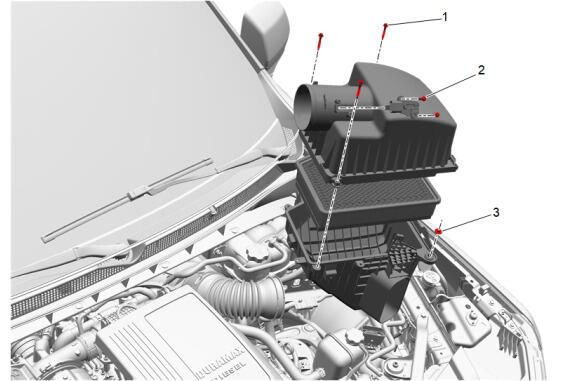

GM5619603Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Assembly with Mass Airflow Sensor

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Cleaner Housing Cover Bolt [ 3x ] - - 9 N.m (80 lb/in) Air Cleaner Assembly Replacement
2 Mass Airflow Sensor Bolt [ 2x ] - - 2.5 N.m (22 lb/in) Mass Airflow Sensor with Intake Air Temperature Sensor Replacement
3 Air Cleaner Nut - - 9 N.m (80 lb/in) Air Cleaner Assembly Replacement

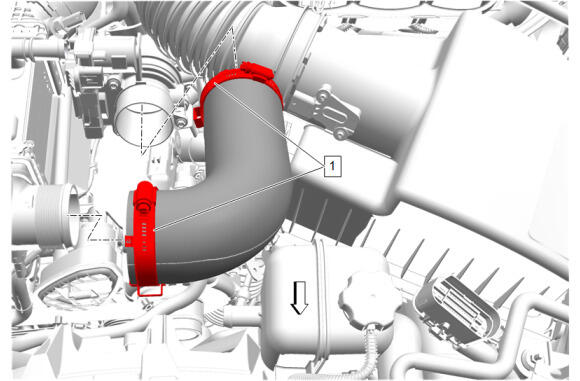

GM5671831Courtesy of GENERAL MOTORS COMPANY
Charge Air Cooler Outlet Air Hose

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Charge Air Cooler Outlet Air Hose Clamp [ 2x ] - - 5.4 N.m (48 lb/in) Charge Air Cooler Outlet Air Hose Replacement

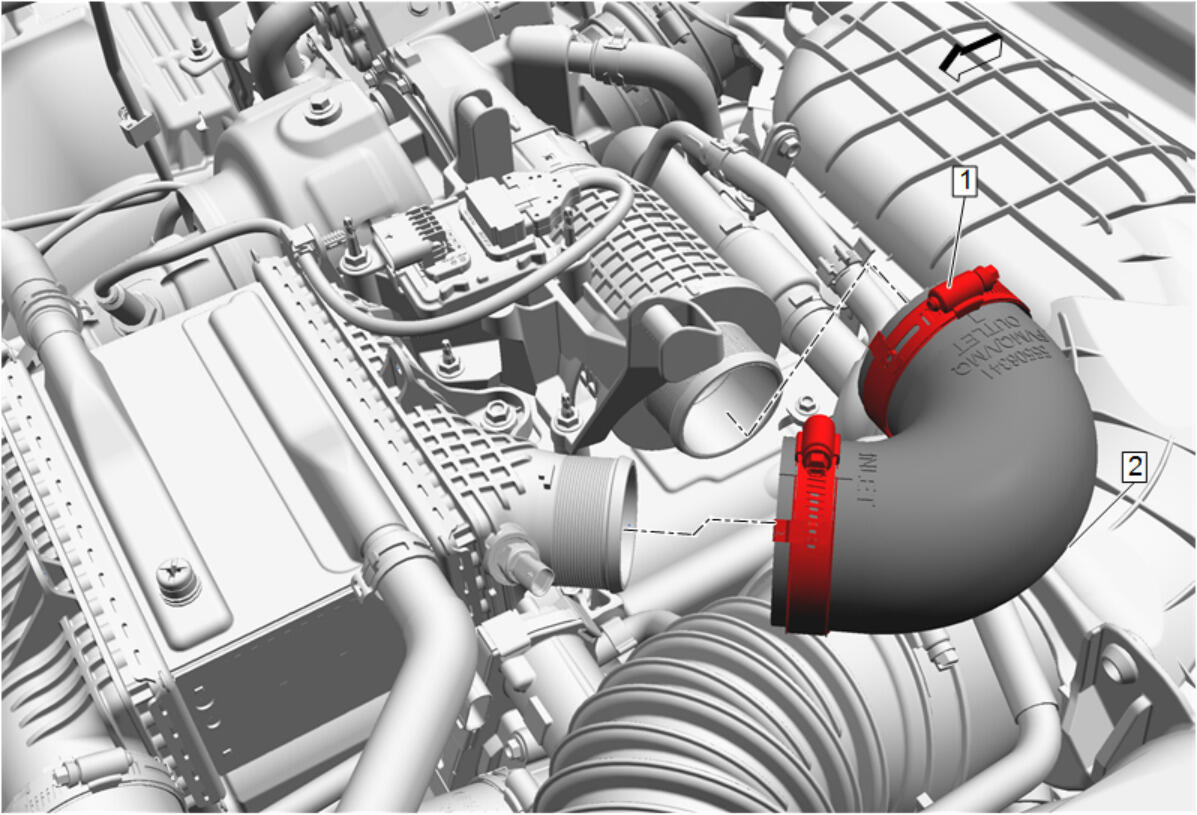

GM5211389Courtesy of GENERAL MOTORS COMPANY
Charge Air Cooler Inlet Air Hose

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Charge Air Cooler Inlet Air Hose Clamp [ 2x ] - - 5.4 N.m (48 lb/in) Charge Air Cooler Inlet Air Hose Replacement

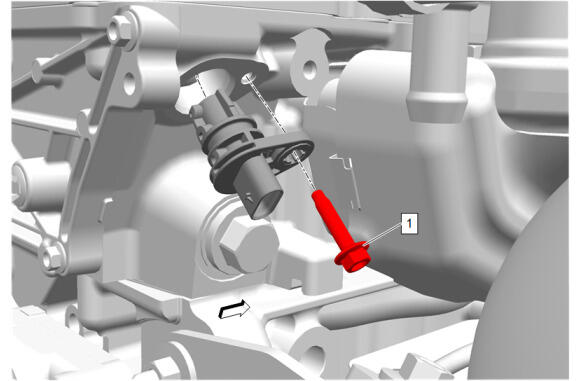

GM5812953Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Sensor

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Camshaft Position Sensor Bolt - - 8.5 N.m (75 lb/in) Crankshaft Position Sensor Replacement

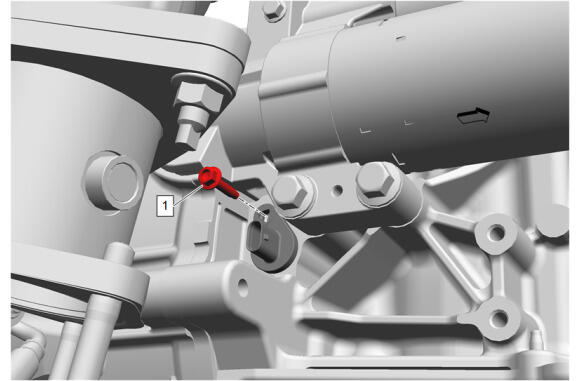

GM5617837Courtesy of GENERAL MOTORS COMPANY
Crankshaft Position Sensor

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Crankshaft Position Sensor Bolt - - 8.5 N.m (75 lb/in) Crankshaft Position Sensor Replacement
GM5617838Courtesy of GENERAL MOTORS COMPANY
Diesel Engine Combustion Air Heater Glow Plugs

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Diesel Engine Combustion Air Heater Glow Plug Yes - 17 N.m (150 lb/in) Glow Plug Replacement - Cylinder 1
2 Diesel Engine Combustion Air Heater Glow Plug Yes - 17 N.m (150 lb/in) Glow Plug Replacement - Cylinder 2
3 Diesel Engine Combustion Air Heater Glow Plug Yes - 17 N.m (150 lb/in) Glow Plug Replacement - Cylinder 3
4 Diesel Engine Combustion Air Heater Glow Plug Yes - 17 N.m (150 lb/in) Glow Plug Replacement - Cylinder 4
5 Diesel Engine Combustion Air Heater Glow Plug Yes - 17 N.m (150 lb/in) Glow Plug Replacement - Cylinder 5
6 Diesel Engine Combustion Air Heater Glow Plug Yes - 17 N.m (150 lb/in) Glow Plug Replacement - Cylinder 6

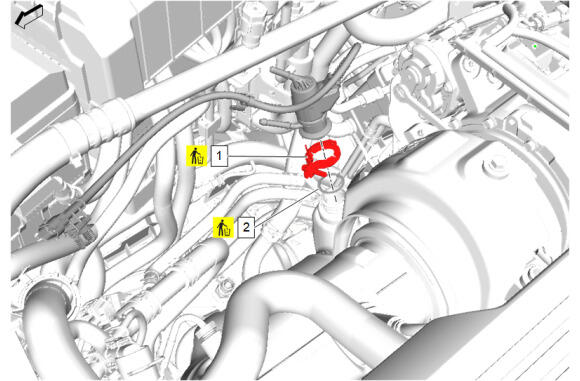

GM5620396Courtesy of GENERAL MOTORS COMPANY
Emission Reduction Fluid Injector

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Emission Reduction Fluid Injector Clamp Yes - 8 N.m (71 lb/in) Reductant Fluid Injector Replacement
2 Exhaust System Front Gasket Yes - - Reductant Fluid Injector Replacement

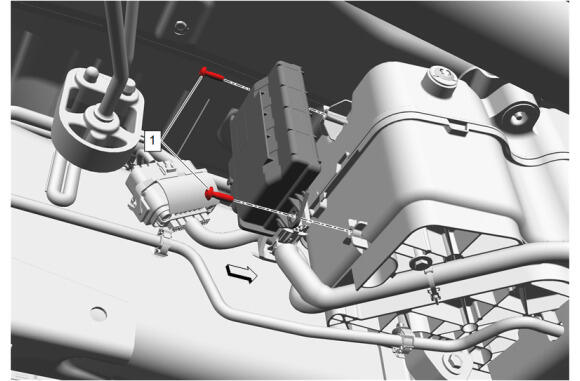

GM5620336Courtesy of GENERAL MOTORS COMPANY
Emission Reduction Fluid Controller

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Emission Reduction Fluid Controller Bolt [ 2x ] - - 2.5 N.m (22 lb/in) Reductant Control Module Replacement (Long Wheelbase) , or Reductant Control Module Replacement (Short Wheelbase)

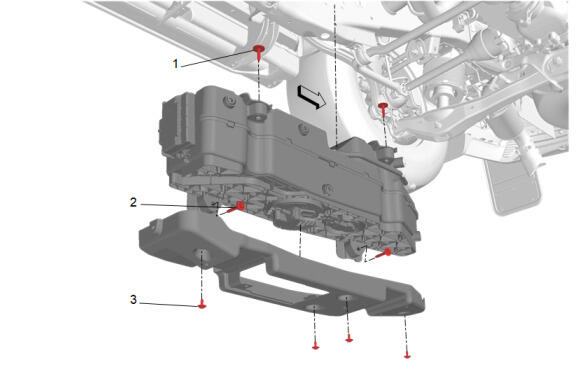

GM5731693Courtesy of GENERAL MOTORS COMPANY
Emission Reduction Fluid Tank

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Emission Reduction Fluid Tank Protector Bolt [ 2x ] - - 22 N.m (16 lb-ft) Emission Reduction Fluid Tank Replacement (Long Wheelbase) , or Emission Reduction Fluid Tank Replacement (Short Wheelbase)
2 Emission Reduction Fluid Tank Bolt [ 2x ] - - 22 N.m (16 lb-ft) Emission Reduction Fluid Tank Replacement (Long Wheelbase) , or Emission Reduction Fluid Tank Replacement (Short Wheelbase)
3 Emission Reduction Fluid Tank Protector Bolt [ 4x ] - - 2.5 N.m (22 lb/in) Emission Reduction Fluid Tank Replacement (Long Wheelbase) , or Emission Reduction Fluid Tank Replacement (Short Wheelbase)

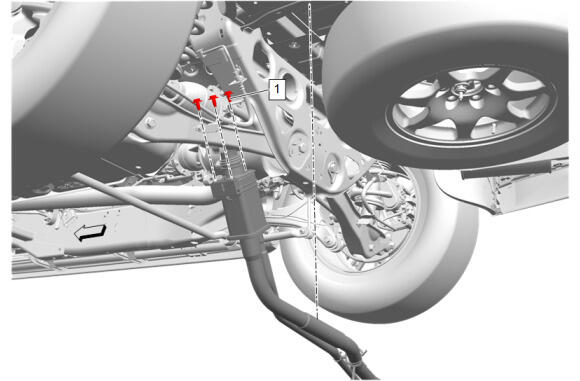

GM5732944Courtesy of GENERAL MOTORS COMPANY
Emission Reduction Fluid Tank Filler Pipe

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Emission Reduction Fluid Tank Filler Upper Pipe Bolt [ 3x ] - - 9 N.m (80 lb/in) Emission Reduction Fluid Tank Filler Pipe Replacement (Long Wheelbase) , or Emission Reduction Fluid Tank Filler Pipe Replacement (Short Wheelbase)

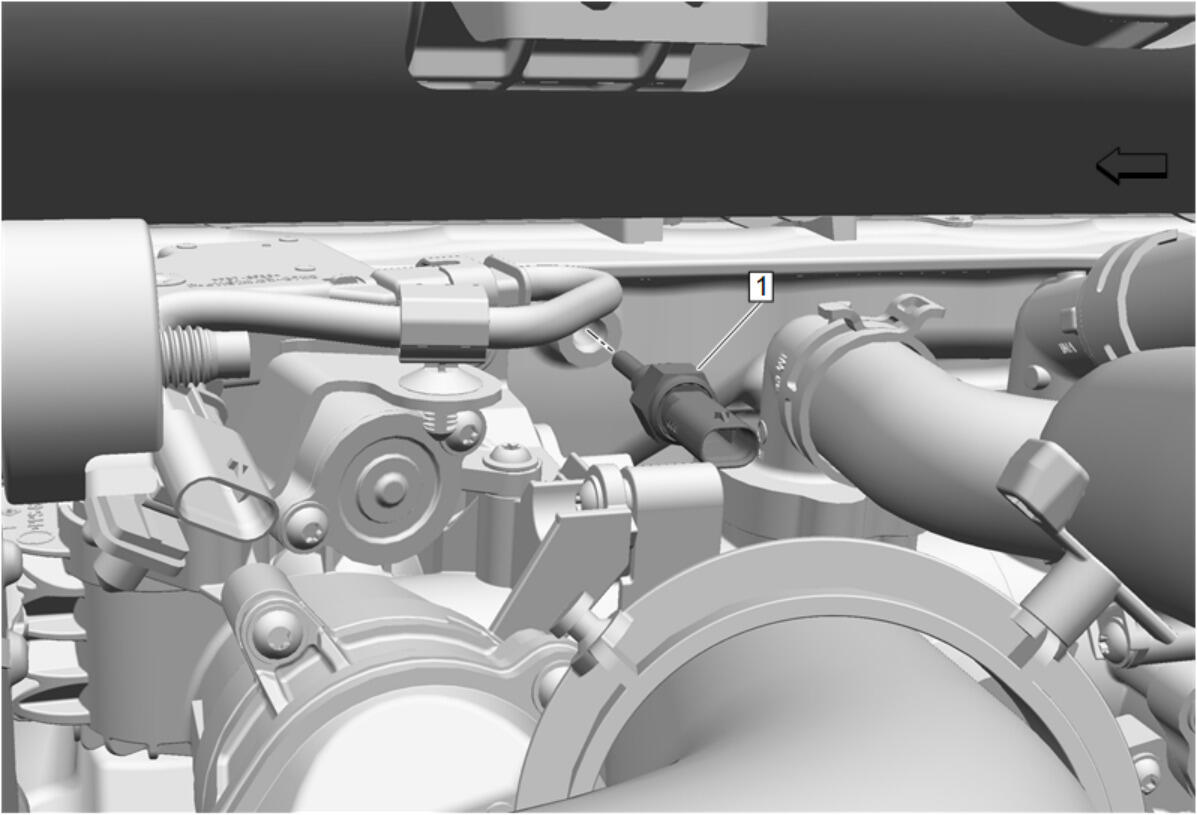

GM5146069Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Temperature Sensor - Engine Block - Front

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Temperature Sensor - - 9 N.m (80 lb/in) Engine Coolant Temperature Sensor Replacement - Engine Block - Front
GM5146085Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Temperature Sensor - Engine Block - Rear

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)

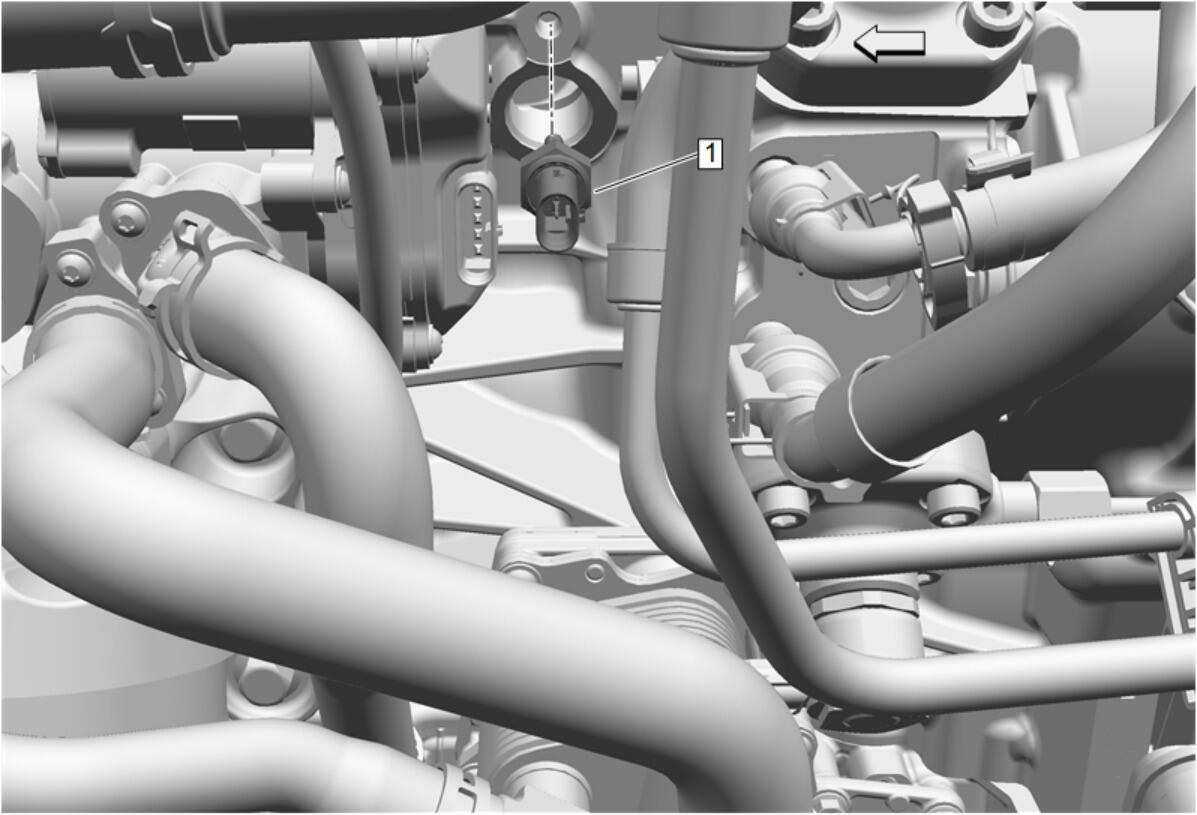

1 Engine Coolant Temperature Sensor - - 9 N.m (80 lb/in) Engine Coolant Temperature Sensor Replacement - Engine Block - Rear

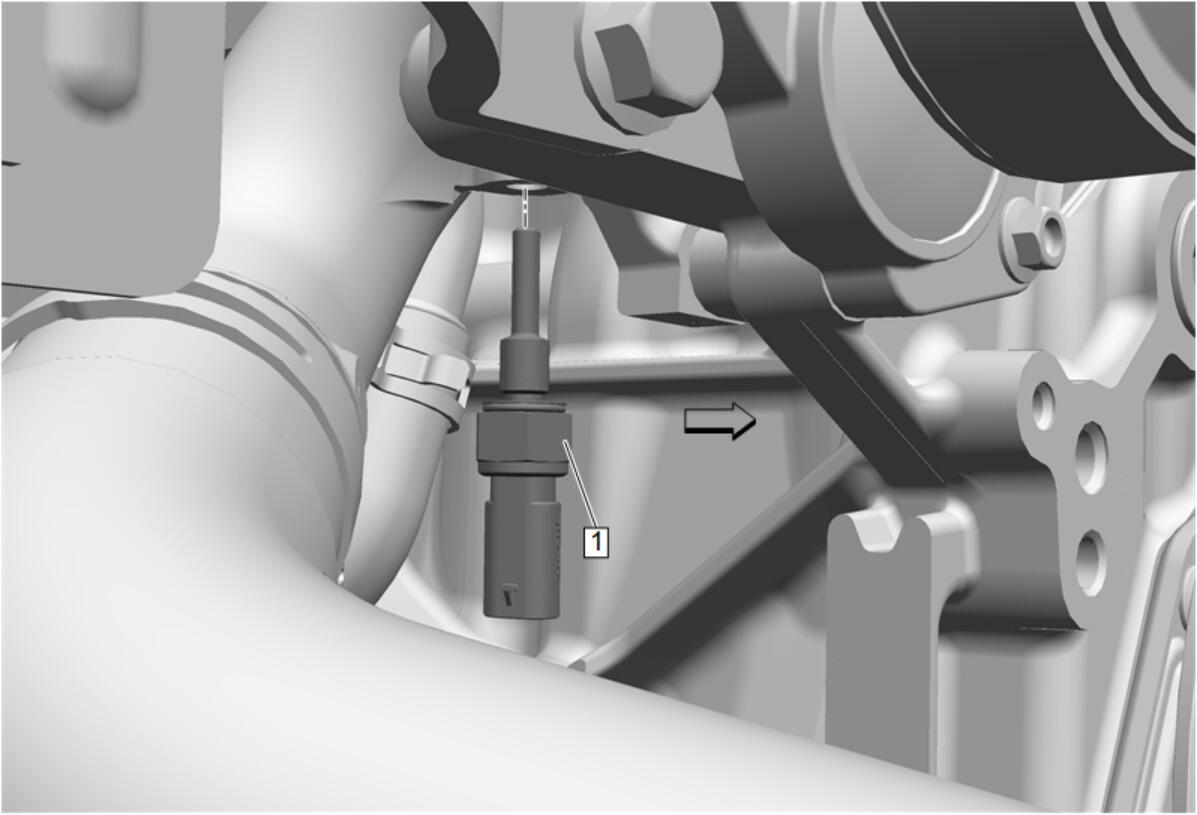

GM5145449Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Temperature Sensor - Water Pump Inlet Pipe

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Temperature Sensor - - 9 N.m (80 lb/in) Engine Coolant Temperature Sensor Replacement - Water Pump Inlet Pipe
GM5605569Courtesy of GENERAL MOTORS COMPANY
Engine Control Module Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Control Module Bracket Bolt [ 3x ] - - 9 N.m (80 lb/in) Engine Control Module Bracket Replacement

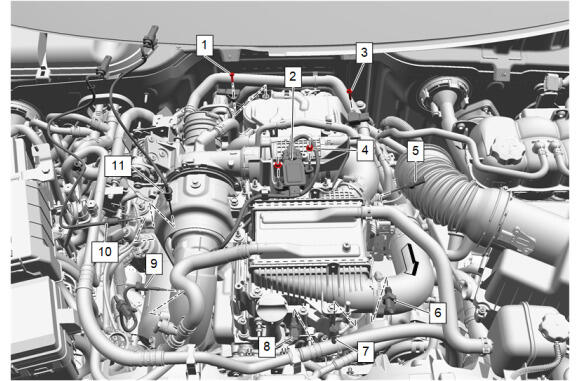

GM5619608Courtesy of GENERAL MOTORS COMPANY

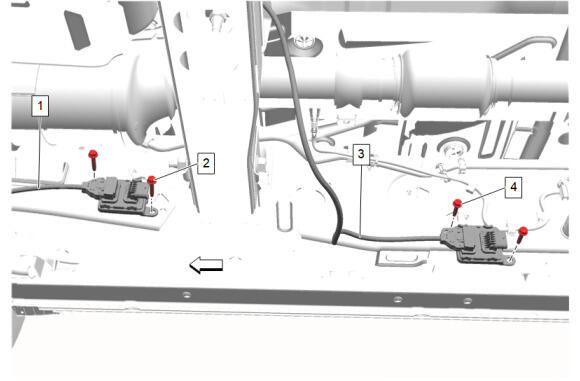

Engine Sensors

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Crankcase Pressure Sensor Bolt - - 4.2 N.m (37 lb/in) Crankcase Pressure Sensor Replacement
2 Nitrogen Oxides Sensor - - 50 N.m (37 lb-ft) Nitrogen Oxides Sensor Replacement - Position 1
3 Intake Air Pressure and Temperature Sensor Bolt - - 8.5 N.m (75 lb/in) Intake Air Pressure and Temperature Sensor Replacement
4 Nitrogen Oxides Sensor Nut [ 2x ] - - 9 N.m (80 lb/in) Nitrogen Oxides Sensor Replacement - Position 1
5 Charge Air Cooler Air Temperature Sensor - - 19 N.m (14 lb-ft) Charge Air Cooler Air Temperature Sensor Replacement
6 High Pressure Diesel Fuel Sensor - - 60 N.m (44 lb-ft) High Pressure Diesel Fuel Sensor Replacement
7 Charge Air Temperature Secondary Sensor - - 19 N.m (14 lb-ft) Charge Air Temperature Secondary Sensor Replacement
8 Cylinder Head Temperature Sensor - - 12 N.m (106 lb/in) Cylinder Head Temperature Sensor Replacement
9 Exhaust Gas Temperature Sensor - - 45 N.m (33 lb-ft) Exhaust Gas Temperature Sensor Replacement - Position 1
10 Exhaust Gas Recirculation Cooler Temperature Sensor - - 45 N.m (33 lb-ft) Exhaust Gas Recirculation Cooler Temperature Sensor Replacement - Position 2
11 Exhaust Gas Temperature Sensor - - 45 N.m (33 lb-ft) Exhaust Gas Temperature Sensor Replacement - Position 2
GM5619831Courtesy of GENERAL MOTORS COMPANY
Engine Oil Pressure Sensor and Engine Oil Temperature Sensor

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Oil Pressure Sensor - - 35 N.m (26 lb-ft) Engine Oil Pressure Sensor Replacement
2 Engine Oil Temperature Sensor - - 20 N.m (15 lb-ft) Engine Oil Temperature Sensor Replacement

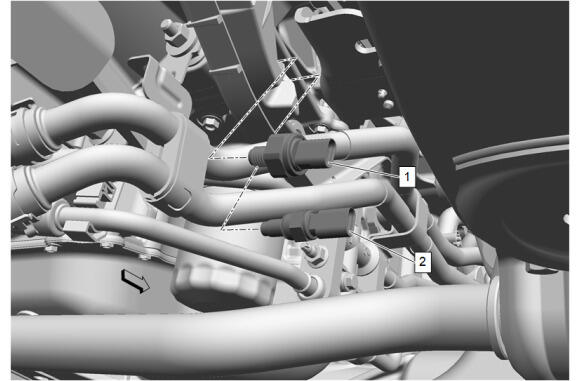

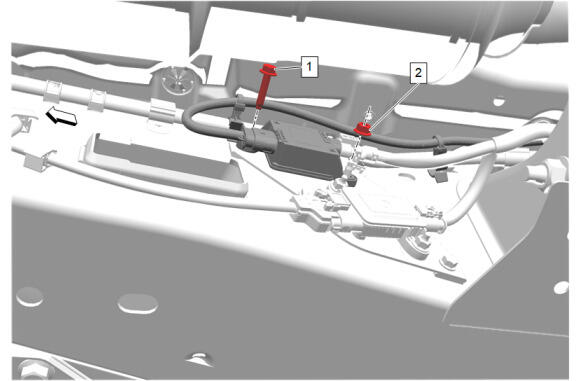

GM5654800Courtesy of GENERAL MOTORS COMPANY
Exhaust Particulate Matter Sensor

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Exhaust Particulate Sensor Bolt - - 9 N.m (80 lb/in) Exhaust Particulate Matter Sensor Replacement
2 Nitrogen Oxides Sensor Nut - - 9 N.m (80 lb/in) Exhaust Particulate Matter Sensor Replacement

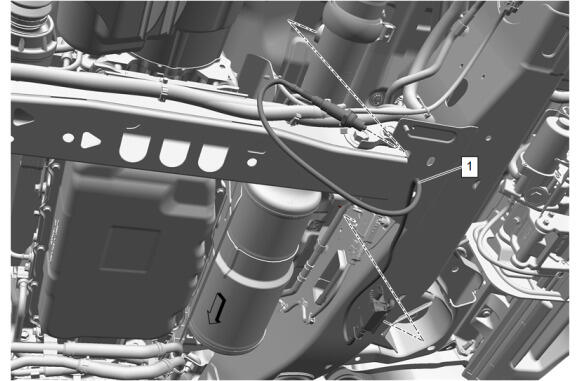

GM5616800Courtesy of GENERAL MOTORS COMPANY
Exhaust Particulate Matter Sensor

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Exhaust Particulate Matter Sensor - - 50 N.m (37 lb-ft) Exhaust Particulate Matter Sensor Replacement

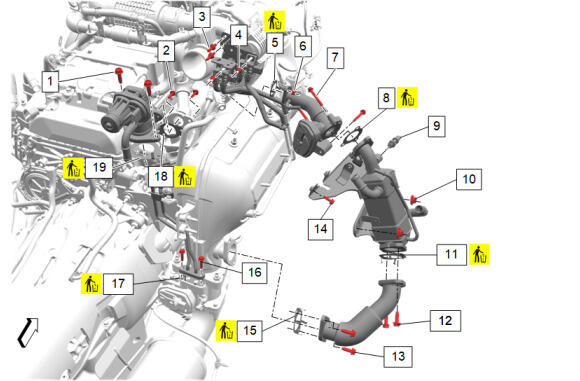

GM5654811Courtesy of GENERAL MOTORS COMPANY

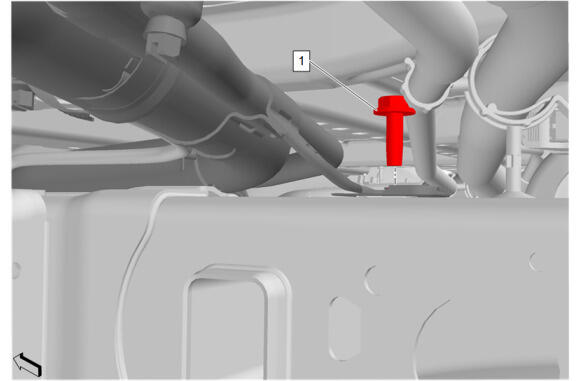

Exhaust Gas Recirculation Components

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Exhaust Gas Recirculation Valve Bolt [ 2x ] - - 36 N.m (27 lb-ft) Exhaust Gas Recirculation Valve Replacement - Exhaust Manifold
2 Exhaust Gas Recirculation Cooler Bolt [ 2x ] - - 15 N.m (11 lb-ft) Exhaust Gas Recirculation Valve Replacement - Exhaust Manifold
3 Exhaust Pressure Differential Sensor Bracket Stud [ 2x ] - - 9 N.m (80 lb/in) Exhaust Pressure Differential Sensor Bracket Replacement
4 Exhaust Pressure Differential Sensor Bracket Nut [ 2x ] - - 9 N.m (80 lb/in) Exhaust Pressure Sensor Pipe Replacement - Exhaust Gas Recirculation Cooler
Exhaust Pressure Sensor Pipe Replacement - Nitrogen Oxides Catalytic Converter
5 Exhaust Gas Recirculation Pipe Gasket Yes - - Exhaust Gas Recirculation Valve Hose Replacement
6 Exhaust Gas Recirculation Pipe Nut [ 2x ] - - 9 N.m (80 lb/in) Exhaust Gas Recirculation Valve Hose Replacement
7 Exhaust Gas Recirculation Pipe Bolt [ 3x ] - - 15 N.m (11 lb-ft) Exhaust Gas Temperature Sensor Replacement - Position 3
8 Exhaust Gas Recirculation Valve Cooler Gasket Yes - - Exhaust Gas Recirculation Valve Replacement - Exhaust Gas Recirculation Cooler
9 Exhaust Gas Recirculation Cooler Temperature Sensor - - 15 N.m (11 lb-ft) Exhaust Gas Recirculation Cooler Temperature Sensor Replacement - Position 1
10 Exhaust Gas Recirculation Cooler Nut [ 2x ] - - 22 N.m (16 lb-ft) Exhaust Gas Recirculation Cooler Replacement
11 Exhaust Gas Recirculation Cooler Inlet Pipe Gasket Yes - - Exhaust Gas Recirculation Cooler Replacement
12 Exhaust Gas Recirculation Cooler Inlet Pipe Bolt [ 2x ] - - 22 N.m (16 lb-ft) Exhaust Gas Recirculation Pipe Replacement (Exhaust Gas Recirculation Cooler)
13 Exhaust Gas Recirculation Cooler Inlet Pipe Bolt [ 2x ] - - 22 N.m (16 lb-ft) Exhaust Gas Recirculation Pipe Replacement (Exhaust Gas Recirculation Cooler)
14 Exhaust Gas Recirculation Pipe Bracket Bolt [ 2x ] - - 22 N.m (16 lb-ft) Exhaust Gas Recirculation Cooler Replacement
15 Exhaust Gas Recirculation Cooler Inlet Pipe Gasket Yes - - Exhaust Gas Temperature Sensor Replacement - Position 3
16 Exhaust Gas Recirculation Coolant Return Pipe Bolt [ 2x ] - - 9 N.m (80 lb/in) Exhaust Gas Recirculation Valve Cooling Return Hose Replacement
17 Turbocharger Coolant Feed and Return Pipe Gasket Yes - - Exhaust Gas Recirculation Valve Cooling Return Hose Replacement
18 Exhaust Gas Recirculation Valve Gasket Yes - - Exhaust Gas Recirculation Valve Replacement - Exhaust Manifold
19 Exhaust Gas Recirculation Valve Gasket Yes - - Exhaust Gas Recirculation Valve Replacement - Exhaust Manifold

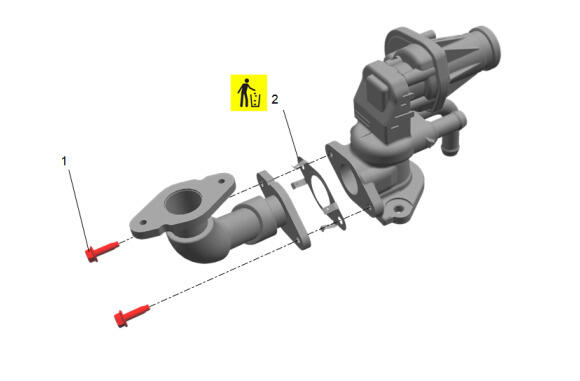

GM5812932Courtesy of GENERAL MOTORS COMPANY
Exhaust Gas Recirculation Valve Cleaning and Inspection

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Exhaust Gas Recirculation Cooler Bolt [ 2x ] - - 15 N.m (11 lb-ft) Exhaust Gas Recirculation Cooler Inlet Pipe Replacement (Exhaust Gas Recirculation Cooler)
2 Exhaust Gas Recirculation Valve Gasket Yes - - Exhaust Gas Recirculation Cooler Inlet Pipe Replacement (Exhaust Gas Recirculation Cooler)

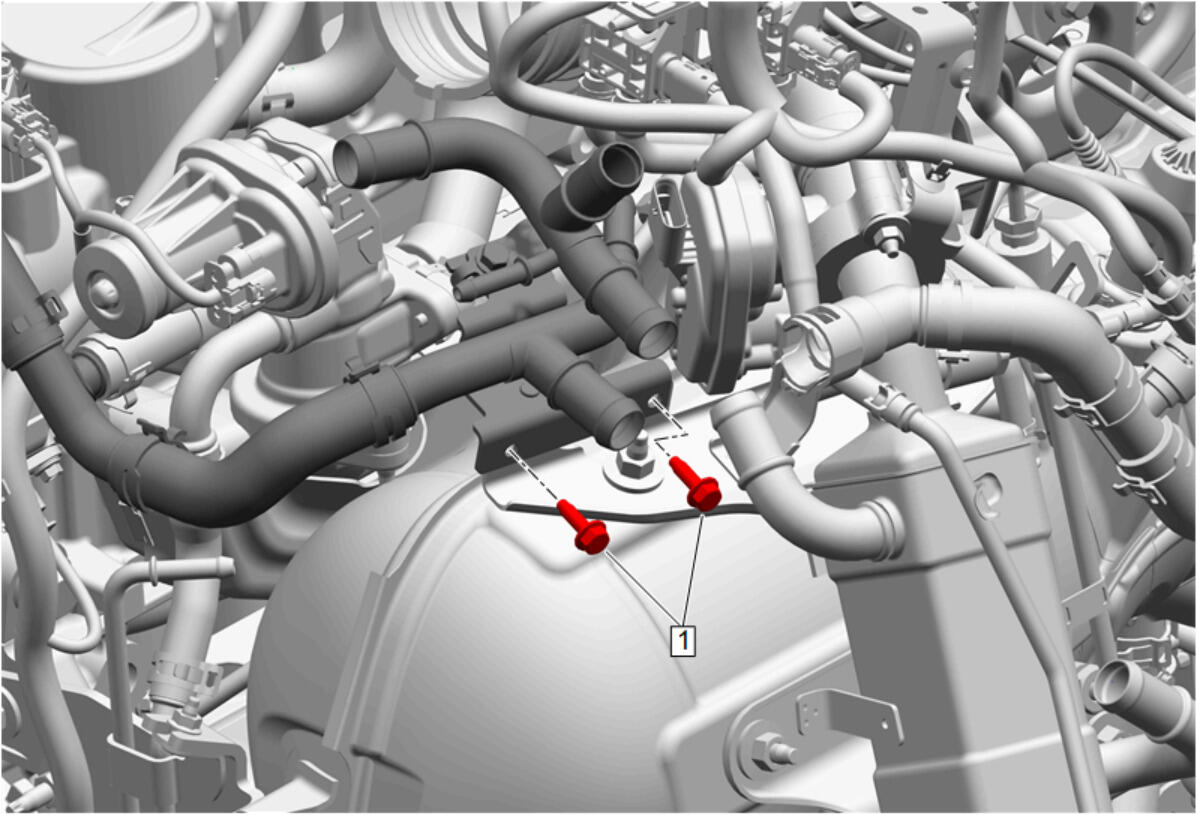

GM5186755Courtesy of GENERAL MOTORS COMPANY
Exhaust Gas Recirculation Pipe Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Exhaust Gas Recirculation Pipe Bracket Bolt [ 2x ] - - 9 N.m (80 lb/in) Exhaust Gas Recirculation Cooler Inlet Pipe Replacement (Exhaust Gas Recirculation Cooler)

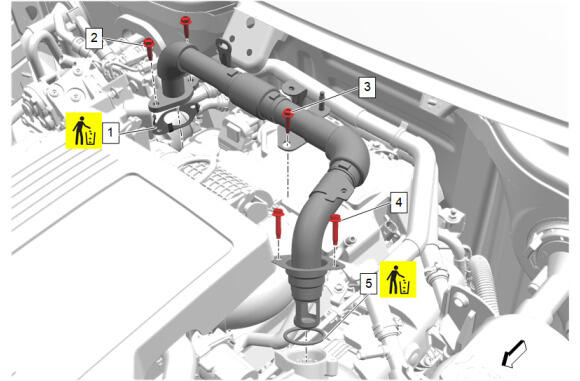

GM5654815Courtesy of GENERAL MOTORS COMPANY
Exhaust Gas Recirculation Pipe Replacement - Exhaust Manifold

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Exhaust Gas Recirculation Pipe Gasket Yes - - Exhaust Gas Recirculation Pipe Replacement (Exhaust Gas Recirculation Cooler)
2 Exhaust Gas Recirculation Cooler Bolt [ 2x ] - - 15 N.m (11 lb-ft) Exhaust Gas Recirculation Pipe Replacement (Exhaust Gas Recirculation Cooler)
3 Exhaust Gas Recirculation Outlet Pipe Bolt - - 8.5 N.m (75 lb/in) Exhaust Gas Recirculation Pipe Replacement (Exhaust Gas Recirculation Cooler)
4 Exhaust Gas Recirculation Outlet Pipe Bolt - - 8.5 N.m (75 lb/in) Exhaust Gas Recirculation Pipe Replacement (Exhaust Gas Recirculation Cooler)
5 Exhaust Gas Recirculation Pipe Seal Yes - - Exhaust Gas Recirculation Pipe Replacement (Exhaust Gas Recirculation Cooler)

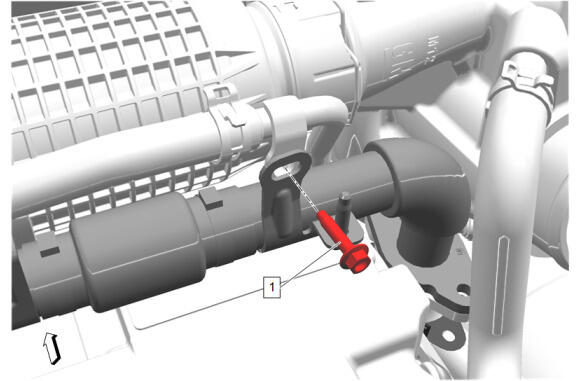

GM5873565Courtesy of GENERAL MOTORS COMPANY
Exhaust Gas Recirculation Pipe Replacement

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbocharger Coolant Feed Pipe Bolt - - 8.5 N.m (75 lb/in) Exhaust Gas Recirculation Cooler Outlet Pipe Replacement - Intake Manifold

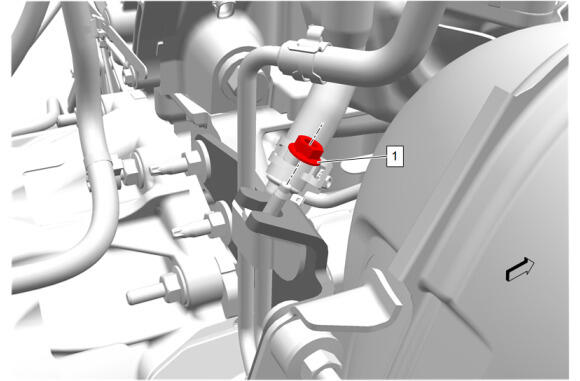

GM5898419Courtesy of GENERAL MOTORS COMPANY

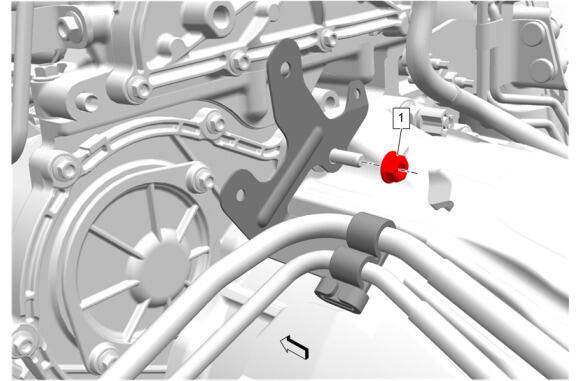

Exhaust Gas Recirculation Valve Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Exhaust Gas Recirculation Valve Bracket Nut - - 9 N.m (80 lb/in) Exhaust Gas Recirculation Valve Hose Replacement
GM5615234Courtesy of GENERAL MOTORS COMPANY

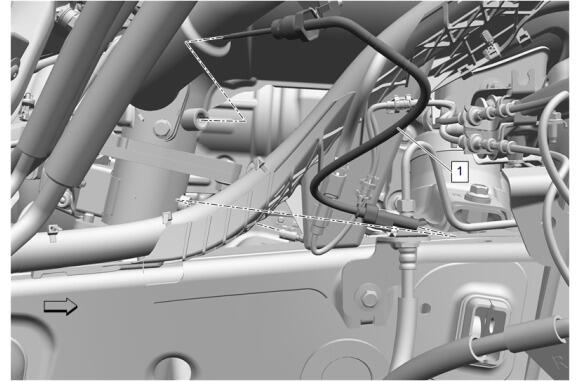

Exhaust Gas Temperature Sensor Replacement - Position 3

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Exhaust Gas Temperature Sensor - - 45 N.m (33 lb-ft) Exhaust Gas Temperature Sensor Replacement - Position 3

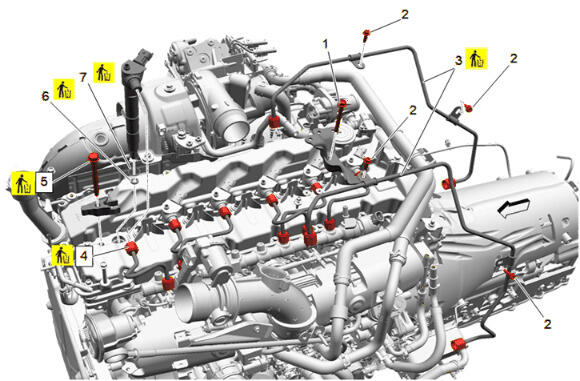

GM5642876Courtesy of GENERAL MOTORS COMPANY
Fuel Injector and Components

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Injection Fuel Feed Pipe Bracket Bolt - - 15 N.m (11 lb-ft) High Pressure Diesel Fuel Injection Rail Replacement
2 Fuel Injection Fuel Feed Pipe Bolt [ 4x ] - - 8.5 N.m (75 lb/in) High Pressure Diesel Fuel Feed to Rail Pipe Replacement
3 High Pressure Diesel Fuel Feed to Rail Pipe [ 2x ] Yes - 38 N.m (28 lb-ft) High Pressure Diesel Fuel Feed to Rail Pipe Replacement
4 High Pressure Diesel Fuel Feed to Injector Pipe [ 6x ] Yes - 38 N.m (28 lb-ft) High Pressure Diesel Fuel Feed to Injector Pipe Replacement
5 Fuel Injector Bolt [ 6x ] - - First Pass: 10 N.m (89 lb/in)
Final Pass: 120 degrees		 High Pressure Diesel Fuel Injector Replacement
6 Fuel Injector Washer [ 6x ] Yes - - High Pressure Diesel Fuel Injector Replacement
7 Fuel Injector Seal [ 6x ] Yes - - High Pressure Diesel Fuel Injector Replacement

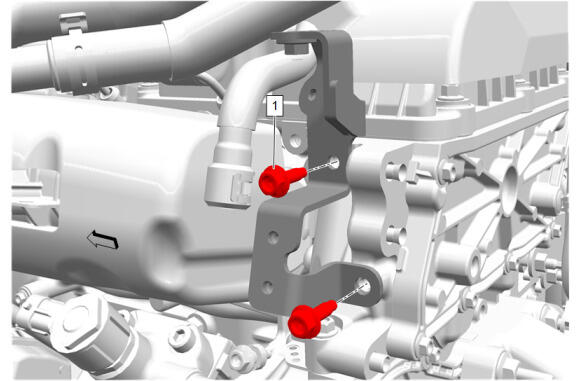

GM5814838Courtesy of GENERAL MOTORS COMPANY
Fuel Injector Fuel Return Hose Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Injection Fuel Feed Pipe Bracket Bolt [ 2x ] - - 15 N.m (11 lb-ft) Fuel Injector Fuel Return Hose Bracket Replacement

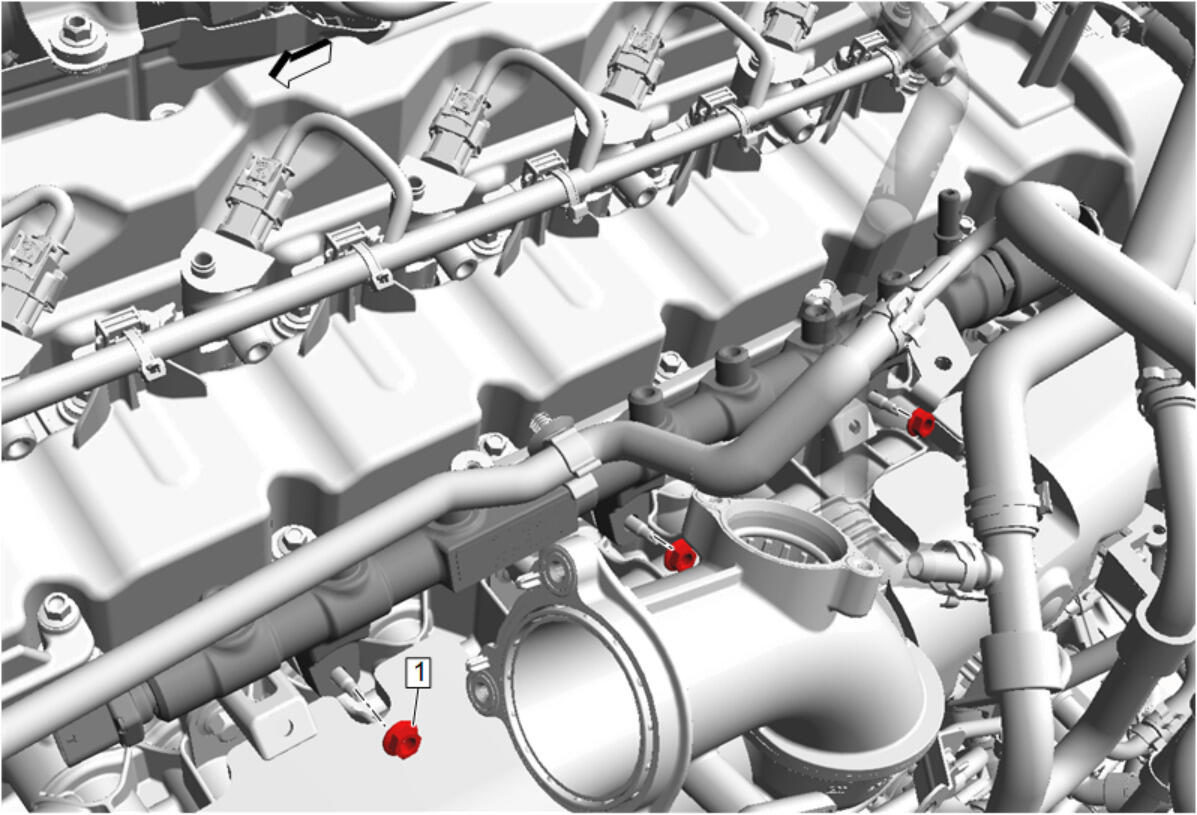

GM5160483Courtesy of GENERAL MOTORS COMPANY
Fuel Injection Fuel Rail

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Injection Fuel Rail Nut [ 3x ] - - 15 N.m (11 lb-ft) High Pressure Diesel Fuel Injection Rail Replacement

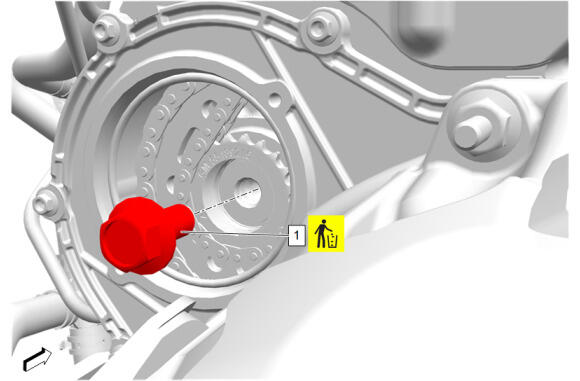

GM5875614Courtesy of GENERAL MOTORS COMPANY
Fuel Pump Access Hole Cover

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Injection Pump Driven Sprocket Bolt Yes - First Pass: 30 N.m (22 lb-ft) High Pressure Diesel Fuel Pump Replacement (2WD) , or High Pressure Diesel Fuel Pump Replacement (4WD)
Final Pass: 15 degrees

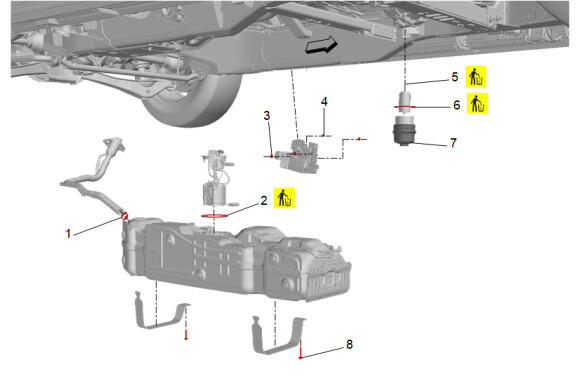

GM5619780Courtesy of GENERAL MOTORS COMPANY
Fuel Tank and Fuel Filter Components

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Tank Filler Hose Clamp - - 3.5 N.m (31 lb/in) Fuel Tank Filler Hose Replacement
2 Fuel Sender Seal Yes - - Fuel Tank Fuel Pump Module Replacement (Short Wheelbase) , or Fuel Tank Fuel Pump Module Replacement (Long Wheelbase)
3 Fuel Pump Power Control Module Nut [ 2x ] - - 9 N.m (80 lb/in) Fuel Pump Power Control Module Replacement
4 Fuel Pump Power Control Module Bracket Bolt [ 2x ] - - 9 N.m (80 lb/in) Fuel Pump Power Control Module Replacement
5 Fuel Filter Seal Yes - - Evaporative Emission Canister Replacement (Short Wheelbase) , or Evaporative Emission Canister Replacement (Long Wheelbase)
6 Fuel Filter Seal Yes - - Evaporative Emission Canister Replacement (Short Wheelbase) , or Evaporative Emission Canister Replacement (Long Wheelbase)
7 Fuel/Water Separator Reservoir and Filter Assembly - - 25 N.m (18 lb-ft) Fuel Filter Replacement (Long Wheelbase) , or Fuel Filter Replacement (Short Wheelbase)
8 Fuel Tank Strap Bolt [ 2x ] - - 22 N.m (16 lb-ft) Fuel Tank Replacement (Short Wheelbase) , or Fuel Tank Replacement (Long Wheelbase)

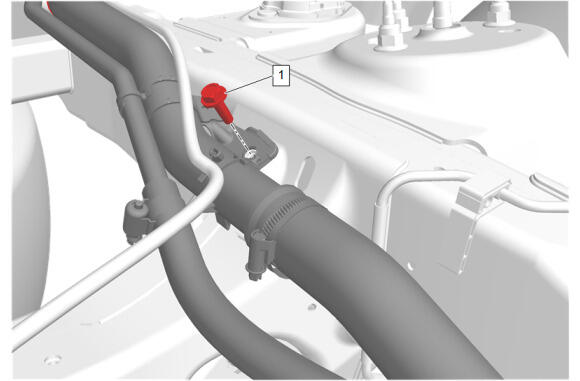

GM5809583Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Filler Pipe Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Tank Filler Pipe Bracket Bolt - - 22 N.m (16 lb-ft) Fuel Tank Filler Pipe Replacement
GM5809584Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Filler Pipe Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Tank Filler Pipe Bracket Bolt - - 22 N.m (16 lb-ft) Fuel Tank Filler Pipe Replacement

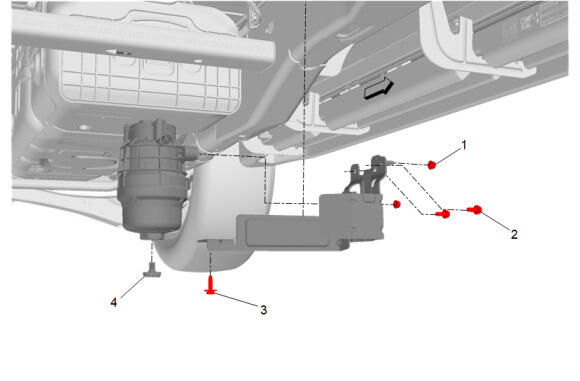

GM5795381Courtesy of GENERAL MOTORS COMPANY
Fuel Filter

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Filter Bracket Nut [ 2x ] - - 22 N.m (16 lb-ft) Fuel Filter Assembly Replacement (Long Wheelbase) , or Fuel Filter Assembly Replacement (Short Wheelbase)
2 Fuel Filter Bracket Bolt [ 2x ] - - 20 N.m (15 lb-ft) Fuel Filter Assembly Replacement (Long Wheelbase) , or Fuel Filter Assembly Replacement (Short Wheelbase)
3 Fuel/Water Separator Bolt - - 22 N.m (16 lb-ft) Fuel Filter Assembly Replacement (Long Wheelbase) , or Fuel Filter Assembly Replacement (Short Wheelbase)
4 Fuel Filter Drain Plug - - 3 N.m (27 lb/in) Fuel Filter Assembly Replacement (Long Wheelbase) , or Fuel Filter Assembly Replacement (Short Wheelbase)
GM5806615Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Pipe

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Feed and Return Front Hose Bracket Nut - - 22 N.m (16 lb-ft) Fuel Feed Pipe Replacement
GM5619781Courtesy of GENERAL MOTORS COMPANY

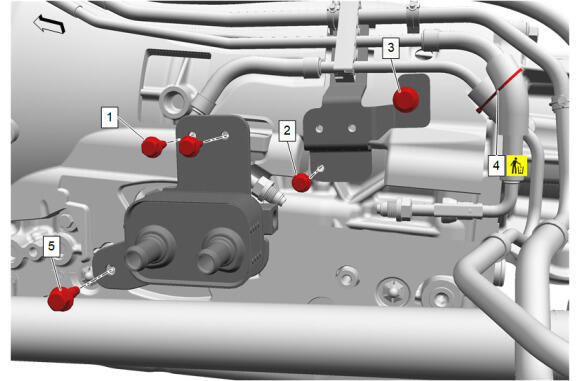

Fuel Return Pipe and Fuel and Evaporative Emission Component Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Cooler Support Bracket Bolt
[ 2x ]		 - - 9 N.m (80 lb/in) Fuel and Evaporative Emission Component Bracket Replacement
2 Fuel Cooler Support Bracket Bolt - - 9 N.m (80 lb/in) Fuel Cooler Replacement
3 Fuel Cooler Bolt - - 22 N.m (16 lb-ft) Fuel Cooler Replacement
4 Fuel Return Pipe Tie Strap Yes - - Fuel Return Pipe Replacement - Front
5 Fuel Cooler Bolt - - 22 N.m (16 lb-ft) Fuel and Evaporative Emission Component Bracket Replacement

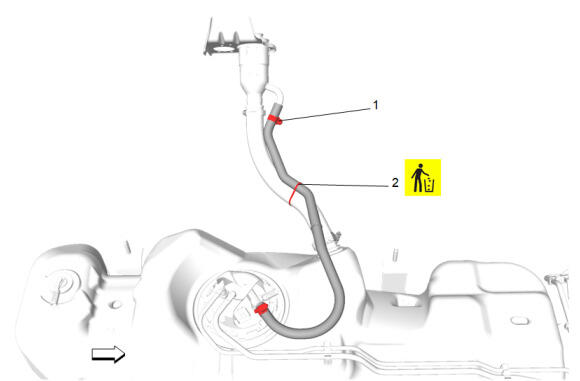

GM5788856Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Filler Vent Hose

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Tank Filler Vent Hose Clamp [ 2x ] - - 4 N.m (35 lb/in) Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) , or Fuel Tank Filler Vent Hose Replacement (Short Wheelbase)
2 Fuel Tank Filler Vent Hose Strap Yes - - Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) , or Fuel Tank Filler Vent Hose Replacement (Short Wheelbase)
GM5537634Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Filler Pipe Housing

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Tank Filler Pipe Housing Bolt [ 3x ] - - 12 N.m (106 lb/in) Fuel Tank Filler Pipe Replacement

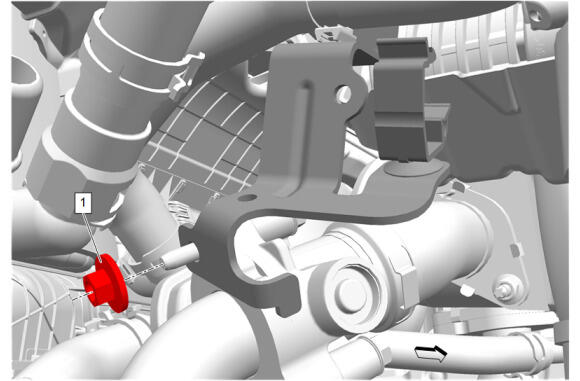

GM5735425Courtesy of GENERAL MOTORS COMPANY
Heater Inlet Hose Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Exhaust Gas Recirculation Valve Bracket Nut - - 9 N.m (80 lb/in) Exhaust Gas Recirculation Valve Hose Replacement
GM5654971Courtesy of GENERAL MOTORS COMPANY
High Pressure Diesel Fuel Pump

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Injection Pump Bolt [ 3x ] - - 36 N.m (27 lb-ft) High Pressure Diesel Fuel Pump Replacement (2WD) , or High Pressure Diesel Fuel Pump Replacement (4WD)
GM5661521Courtesy of GENERAL MOTORS COMPANY
Nitrogen Oxides Sensor - Position 2 and 3

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Nitrogen Oxides Sensor - - 50 N.m (37 lb-ft) Nitrogen Oxides Sensor Replacement - Position 2
2 Nitrogen Oxides Sensor Control Module Bracket Bolt [ 2x ] - - 9 N.m (80 lb/in) Nitrogen Oxides Sensor Replacement - Position 2
3 Nitrogen Oxides Sensor - - 50 N.m (37 lb-ft) Nitrogen Oxides Sensor Replacement - Position 3
4 Nitrogen Oxides Sensor Control Module Bracket Bolt [ 2x ] - - 9 N.m (80 lb/in) Nitrogen Oxides Sensor Replacement - Position 3
GM5619633Courtesy of GENERAL MOTORS COMPANY

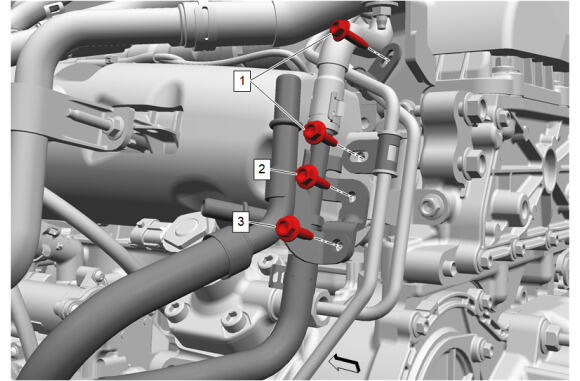

High Pressure Diesel Fuel Feed to Rail Pipe and Diesel Fuel Separator

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Feed Pipe Clip Bolt [ 2x ] - - 8.5 N.m (75 lb/in) High Pressure Diesel Fuel Feed to Rail Pipe Replacement
2 Diesel Fuel Separator Bracket Bolt - - 8.5 N.m (75 lb/in) Diesel Fuel Separator Replacement
3 Fuel Feed Pipe Clip Bolt - - 8.5 N.m (75 lb/in) Diesel Fuel Separator Replacement
GM5735715Courtesy of GENERAL MOTORS COMPANY

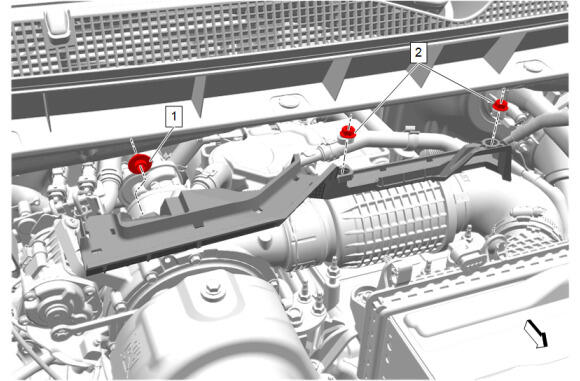

Rear Engine Wiring Harness Channel

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Wiring Harness Bracket Nut - - 9 N.m (80 lb/in) Fastener Specifications
2 Engine Wiring Harness Bracket Nut [ 2x ] - - 9 N.m (80 lb/in) Fastener Specifications

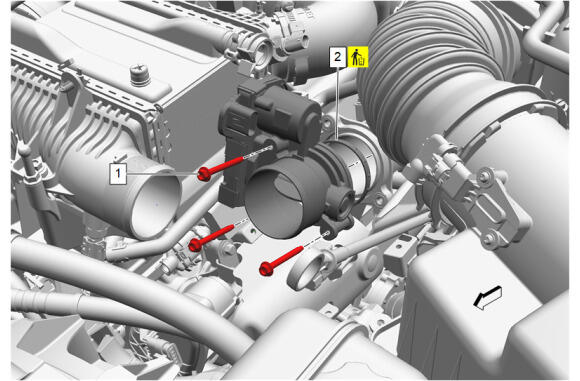

GM5619791Courtesy of GENERAL MOTORS COMPANY
Throttle Body

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Throttle Body Bolt [ 3x ] - - 8.5 N.m (75 lb/in) Throttle Body Assembly Replacement
2 Throttle Body Seal Yes - - Throttle Body Assembly Replacement

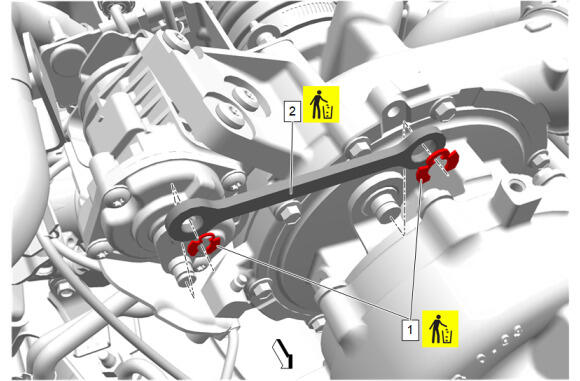

GM5675718Courtesy of GENERAL MOTORS COMPANY
Variable Geometry Turbocharger Actuator

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbocharger Wastegate Actuator Arm Retainer [ 2x ] Yes - - Variable Geometry Turbocharger Actuator Replacement
2 Variable Geometry Turbocharger Actuator Lever Yes - - Variable Geometry Turbocharger Actuator Replacement

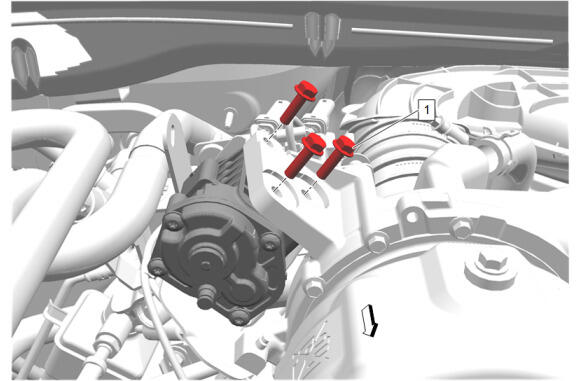

GM5659946Courtesy of GENERAL MOTORS COMPANY
Variable Geometry Turbocharger Actuator Bolts

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbocharger Wastegate Actuator Bolt [ 3x ] - Yes 7 N.m (62 lb/in) Variable Geometry Turbocharger Actuator Replacement
scientia non olet · About Mike's Workshop Manuals
