Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

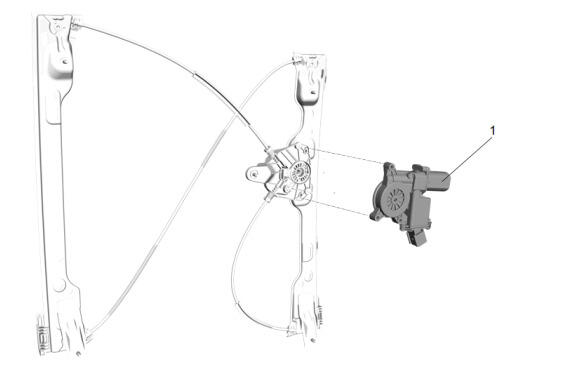

Front Side Door Window Regulator Motor (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Side Door Window Regulator Motor Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Regulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Regulator Nut (1) - Install and tighten [ 5x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Place the window regulator sash retainer (1) in the full up position.
Remove the tape holding the front side door window in the full up position.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Route front side door inside handle cable through hole in deflector (1).
Front Side Door Water Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Pull Handle Bracket (2) - Install
Front Side Door Armrest Bracket Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
Enable the SIR System. SIR Disabling and Enabling
Ensure the window system operates properly.
