Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

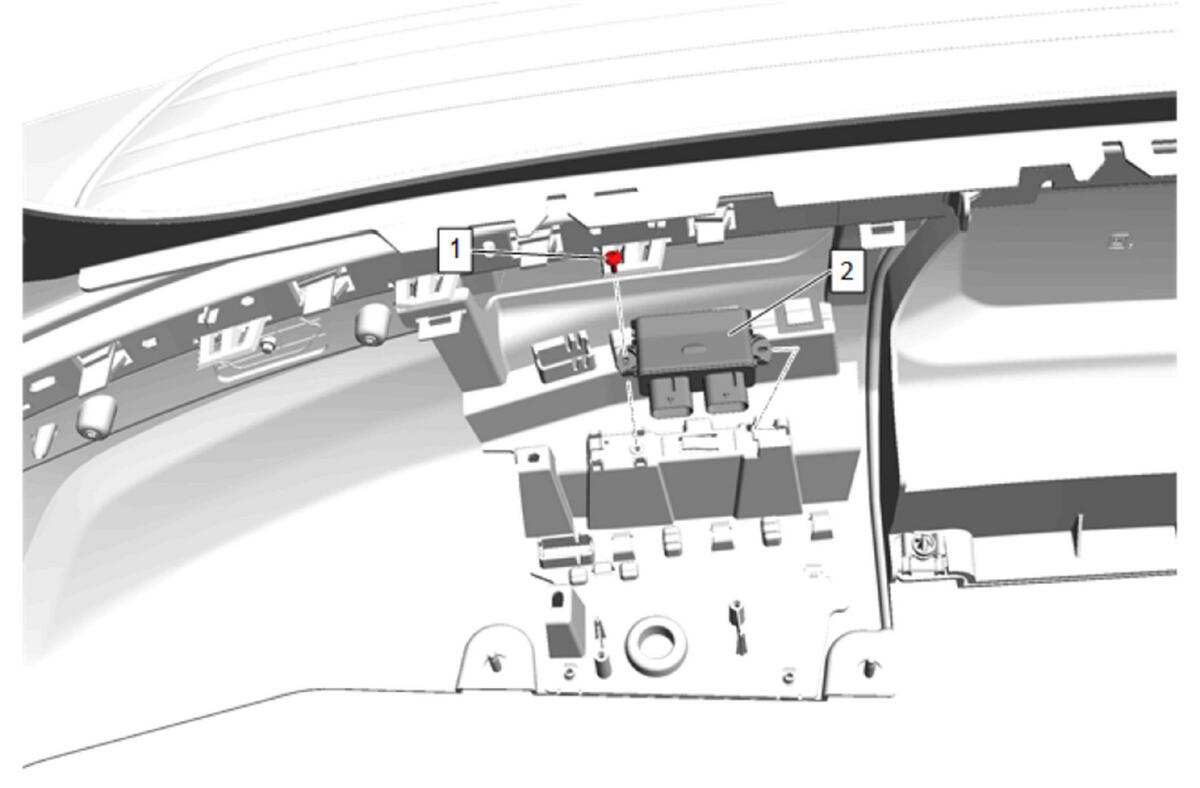

  2. GM5568823Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Module Bolt (1) - Remove

  3. Rear Closure Hands Free Module (2) - Remove
  4. Disconnect all electrical connectors.
