Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

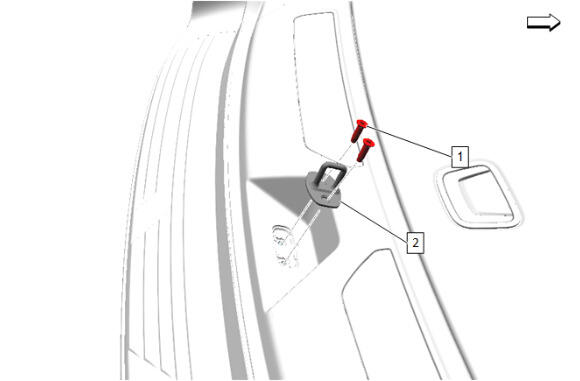

Liftgate Latch Striker (2) - Install

CAUTION:

Refer to Fastener Caution .

Liftgate Latch Striker Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Adjust if necessary.
Courtesy of GENERAL MOTORS COMPANY

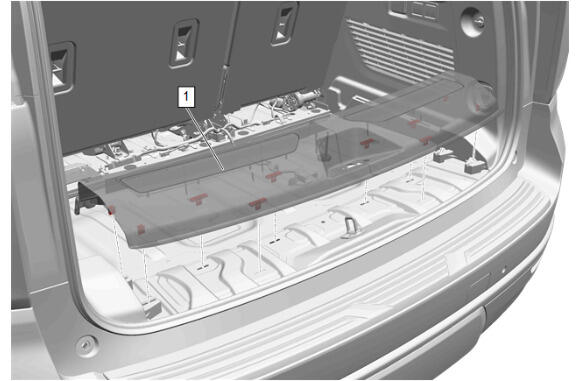

Rear End Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

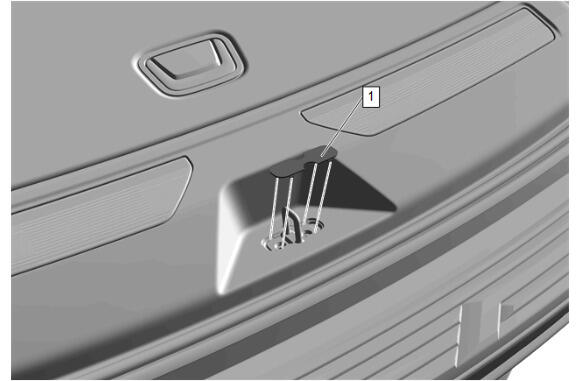

Liftgate Lock Striker Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

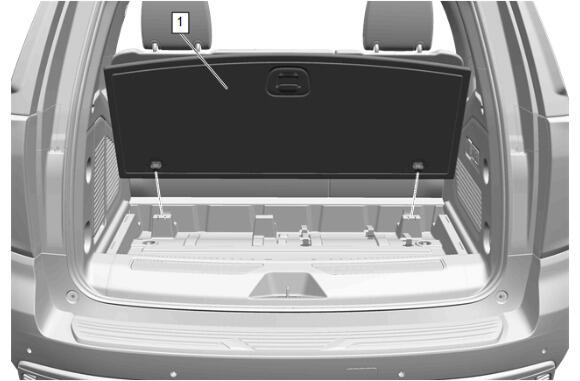

Rear Compartment Floor Stowage Trim Compartment (2) Install

NOTE:

Quantity of fasteners may vary based on option content.

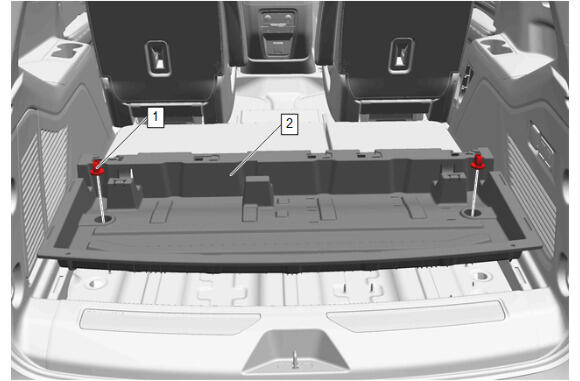

Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install [ 2x ]
- Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

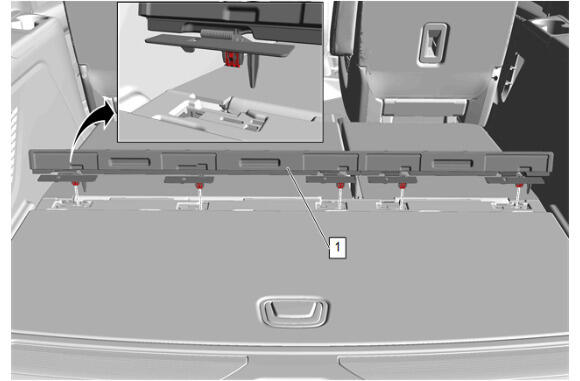

Rear Compartment Floor Panel Front Trim (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Load Floor Trim Panel (1) - Install
