Home >> GMC >> 2021 >> Yukon AT4 >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Vehicle Access - Repair Instructions >> Repair Instructions >> Liftgate Close Switch Replacement >> Removal Procedure

Removal Procedure

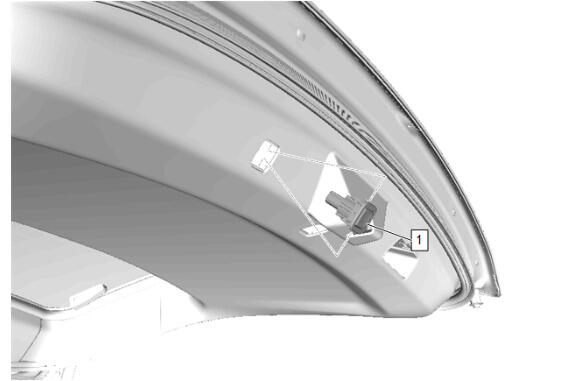

  1. GM5584464Courtesy of GENERAL MOTORS COMPANY

    Using the appropriate tool, release the liftgate close switch retainers and remove the liftgate close switch (1).

  2. Disconnect the electrical connector.
