Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

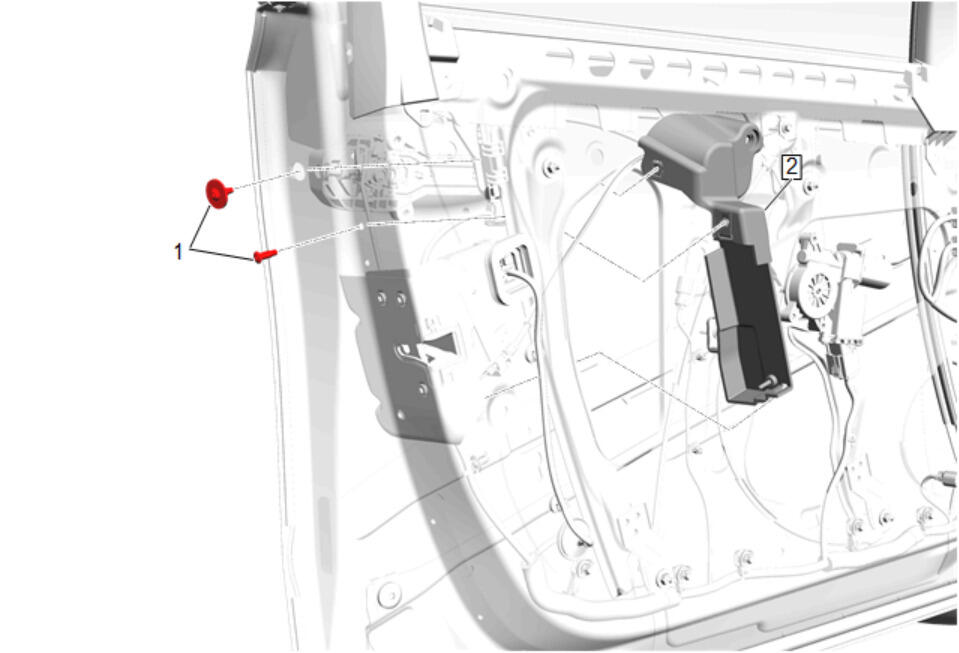

Front Side Door Lock Cover (2) - Install

CAUTION:

Refer to Fastener Caution .

Front Side Door Lock Cover Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Install the front side door weatherstrip.
Courtesy of GENERAL MOTORS COMPANY

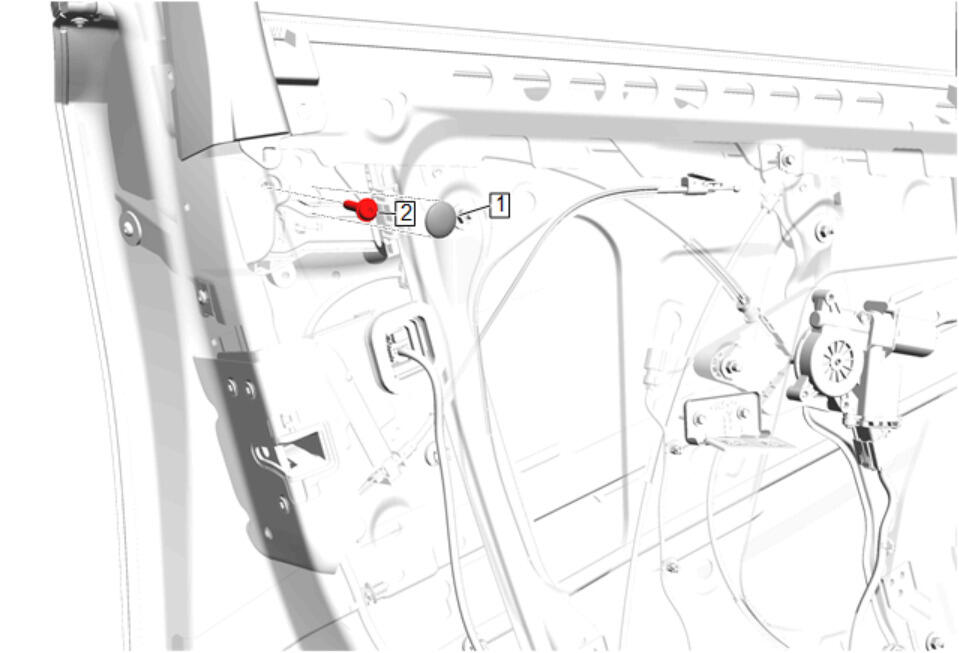

Front Side Door Lock Cover Bolt (2) - Install and tighten - Fastener Specifications
Front Side Door Access Hole Plug (1) - Install
Courtesy of GENERAL MOTORS COMPANY

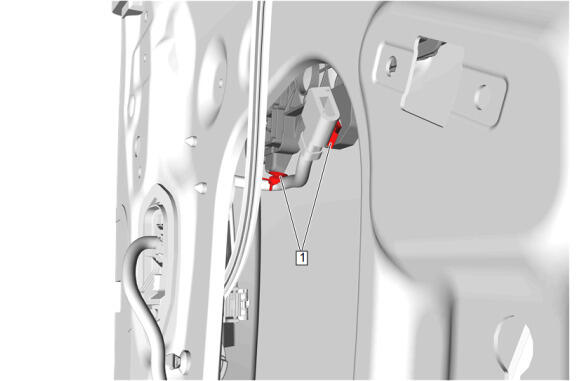

Install the 2 front side door wire harness retainers (1) to the front side door outside handle bracket.
Courtesy of GENERAL MOTORS COMPANY

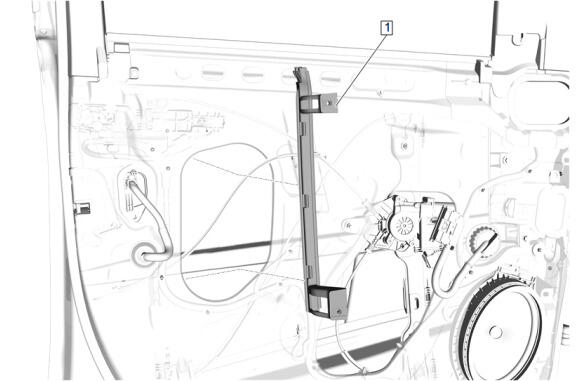

Front Side Door Window Channel Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Channel Retainer Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

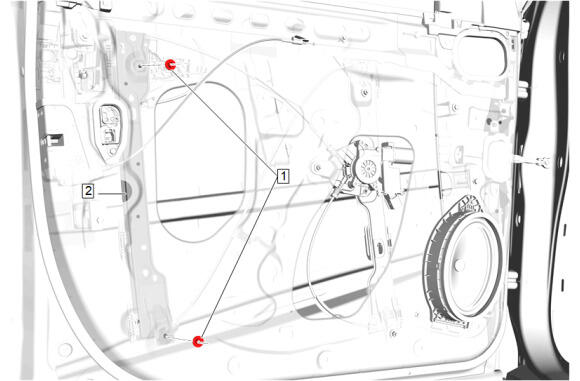

Install the front side door window regulator (2).
Front Side Door Window Regulator Nut (1) - Install and tighten [ 2x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Place the window regulator sash retainer (1) in the full up position.
Remove the tape holding the front side door window in the full up position.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

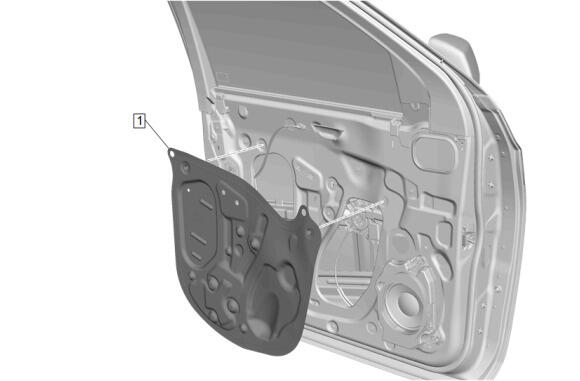

Route front side door inside handle cable through hole in deflector (1).
Front Side Door Water Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

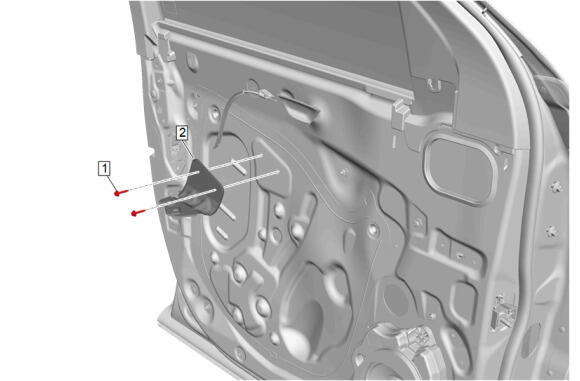

Front Side Door Pull Handle Bracket (2) - Install
Front Side Door Armrest Bracket Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
Enable the SIR System. SIR Disabling and Enabling
